Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature ball valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable high temperature ball valve, welcome to get quotation from our factory.

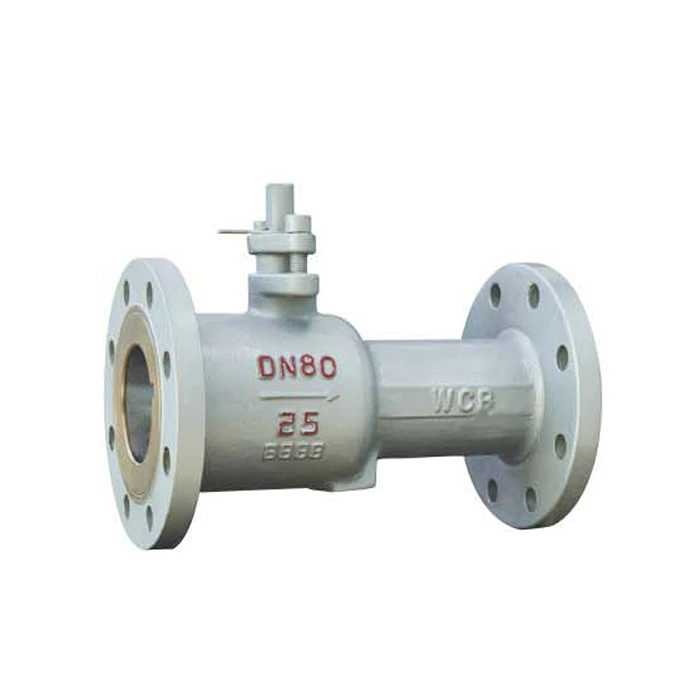

QJ41M high temperature ball valve is a one-piece integral hard-sealed ball valve specially engineered for high-temperature working conditions. It adopts an integrated valve body structure with flange end connection, effectively eliminating leakage risks caused by multi-body assembly gaps. The valve is equipped with high-temperature resistant graphite/PPL sealing pairs, maintaining stable sealing performance under long-term high-temperature service without deformation or failure.
Pressure rating: PN16-PN40 (1.6MPa-4.0MPa)
Body materials: WCB carbon steel, CF8 / CF8M stainless steel
Actuation types: manual handle, worm gear, pneumatic, electric
Applications: QJ41M high temperature ball valve Widely used in heat conduction oil, high-temperature steam, hot water, high-temperature gas and heat supply pipeline systems, suitable for petrochemical, thermal power, metallurgy and central heating industries.
Unique Feature and Use
The one-piece integrated structure enhances overall rigidity and structural stability, effectively resisting high-temperature deformation and eliminating external leakage. Adopting special high-temperature graphite and PPL sealing materials, the valve retains reliable tight shut-off performance under continuous high-temperature and thermal cycling conditions, overcoming the defect of ordinary soft-seated valves that are prone to aging and failure at high temperatures. Compact structure, low maintenance cost and high temperature resistance make it the optimal solution for long-term stable on-off control of high-temperature medium pipelines.
Implementation of Standards
1.Design & Manufacture: GB/T 12224, GB/T 12237
2.Flange Standard: GB/T 9113
3.Structural Face-to-Face Length: GB/T 12221
4.Pressure Test: GB/T 13927

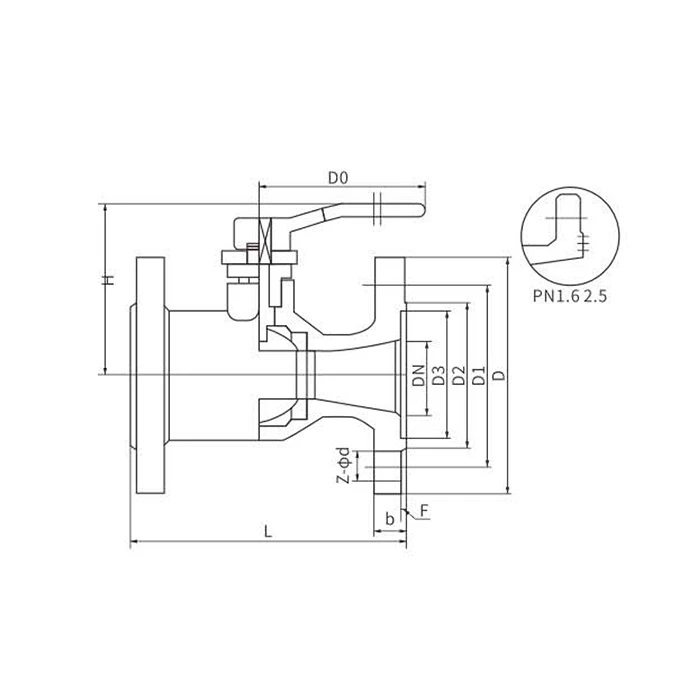

Main Dimensions and Connection Dimensions Replace Ball Valves QQ41M-1.6
|
DN |
Size |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-φd |
H |
D0 |
|
|
15 |
130 |
95 |
65 |
45 |
16 |
4-14 |
105 |
150 |
|
20 |
140 |
105 |
75 |
55 |
16 |
4-14 |
110 |
150 |
|
25 |
150 |
115 |
85 |
65 |
16 |
4-14 |
120 |
160 |
|
32 |
165 |
135 |
100 |
78 |
18 |
4-18 |
140 |
180 |
|
40 |
180 |
145 |
110 |
85 |
18 |
4-18 |
155 |
250 |
|
50 |
200 |
160 |
125 |
100 |
20 |
4-18 |
175 |
300 |
|
65 |
220 |
180 |
145 |
120 |
20 |
4-18 |
195 |
300 |
|
80 |
250 |
195 |
160 |
135 |
22 |
8-18 |
225 |
320 |
|
100 |
280 |
215 |
180 |
155 |
24 |
8-18 |
250 |
320 |
|
125 |
320 |
245 |
210 |
185 |
26 |
8-18 |
270 |
360 |
|
150 |
360 |
280 |
240 |
210 |
28 |
8-23 |
290 |
360 |
Main Dimensions and Connection Dimensions Replacement Gate Valve QZ41M-1.0
|
DN |
Size |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-φd |
H |
D0 |
|
|
40 |
165 |
145 |
110 |
85 |
18 |
4-18 |
155 |
250 |
|
50 |
180 |
160 |
125 |
100 |
20 |
4-18 |
175 |
300 |
|
65 |
195 |
180 |
145 |
120 |
20 |
4-18 |
195 |
300 |
|
80 |
210 |
195 |
160 |
135 |
22 |
4-18 |
225 |
320 |
|
100 |
230 |
215 |
180 |
155 |
22 |
8-18 |
250 |
320 |
|
125 |
255 |
245 |
210 |
185 |
24 |
8-18 |
270 |
360 |
|
150 |
280 |
280 |
240 |
210 |
24 |
8-23 |
290 |
360 |
|
200 |
330 |
335 |
295 |
265 |
26 |
8-23 |
320 |
450 |
Main Dimensions and Connection Dimensions Replacement Gate Valve PQ41M-1.0
|
DN |
Size |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-φd |
H |
D0 |
|
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
120 |
160 |
|
32 |
180 |
135 |
100 |
78 |
18 |
4-18 |
140 |
180 |
|
40 |
230 |
145 |
110 |
85 |
18 |
4-18 |
155 |
250 |
|
50 |
250 |
160 |
125 |
100 |
20 |
4-18 |
175 |
300 |
|
65 |
265 |
180 |
145 |
120 |
20 |
4-18 |
195 |
300 |
|
80 |
280 |
195 |
160 |
135 |
22 |
8-18 |
225 |
320 |
|
100 |
300 |
215 |
180 |
155 |
24 |
8-18 |
250 |
320 |
|
125 |
225 |
245 |
210 |
185 |
26 |
8-18 |
270 |
260 |
|
150 |
350 |
280 |
240 |
210 |
28 |
8-23 |
290 |
360 |
|
200 |
400 |
335 |
295 |
265 |
30 |
8-23 |
320 |
450 |
Details

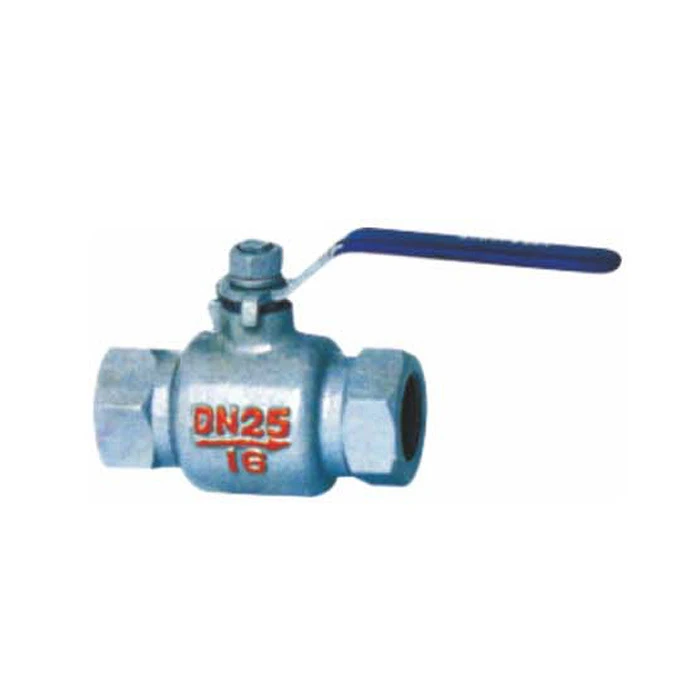

Q11M high temperature ball valve is a threaded floating ball valve designed for high-temperature medium pipelines. It features a compact one-piece body structure with internal thread end connection, realizing fast and leak-proof pipeline assembly. Equipped with high-temperature resistant graphite and PPL composite sealing pairs, the valve avoids soft seal aging and melting failure under continuous high-temperature conditions, ensuring stable sealing and flexible switching performance.
Pressure rating: PN16-PN40
Body materials: WCB carbon steel, stainless steel
Actuation types: manual handle, worm gear, pneumatic, electric
Applications: Q11M high temperature ball valve Widely applicable for heat conduction oil, high-temperature steam, hot circulating water and high-temperature gas pipelines, commonly used in central heating, thermal power, chemical and light industrial systems.
Unique Feature and Use
1.Adopts graphite-metal sealing pair, working temperature up to 350℃, suitable for high-temperature media where PTFE seal cannot work.
2.Female internal thread connection, compact size, easy installation for small-bore pipelines.
3.90-degree quarter-turn quick opening & closing, low flow resistance, simple operation.
4.Floating ball structure, reliable sealing under high-temperature conditions.
5.For small-size high-temperature pipelines of steam, heat-transfer oil and hot oil. Not suitable for large-diameter working conditions.
Implementation of Standards
1.Design & Manufacture: GB/T 12224, GB/T 12237
2.Thread standard: GB/T 7307 (G thread) / ASME B1.20.1 (NPT thread optional)
3.Pressure test: GB/T 13927

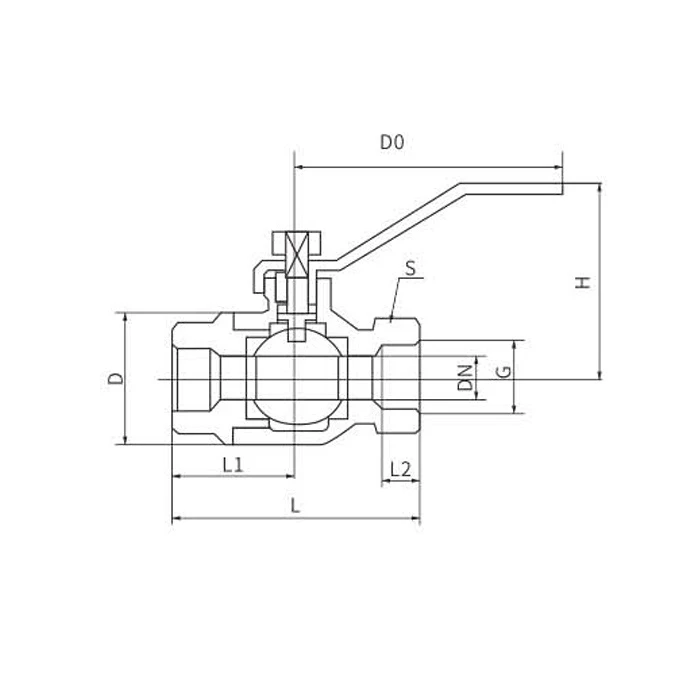

Main Thread Size And Connection Size Of Internal Thread Ball Valve Q11M-1.6Q
|
DN |
Size |
|||||||
|
G |
L |
L1 |
L2 |
S |
D |
H |
D0 |
|
|
15 |
1/2" |
90 |
45 |
14 |
32 |
48 |
82 |
125 |
|
20 |
3/4" |
100 |
50 |
16 |
36 |
55 |
85 |
125 |
|
25 |
1" |
115 |
58 |
18 |
46 |
62 |
90 |
125 |
|
32 |
11/4" |
130 |
66 |
20 |
55 |
80 |
120 |
250 |
|
40 |
11/2" |
150 |
77 |
22 |
61 |
90 |
145 |
250 |
|
50 |
2" |
180 |
91 |
24 |
75 |
112 |
150 |
300 |
Performance Specification
|
Product number |
DN |
Product number |
Valve material |
Adapt to medium |
|||
|
Nominal pressure |
Applicable medium |
Applicable temperature |
Body |
Valve flap |
|||
|
Q11S-16Q |
12-25 |
16 |
Water,steam,gas,oil,etc. |
≤250 |
QT450-10 |
1Cr18Ni9Ti |
8202 |
|
Q41S-16P |
15-300 |
WT200 |
|||||
|
Q41S-16 |
15-500 |
||||||
