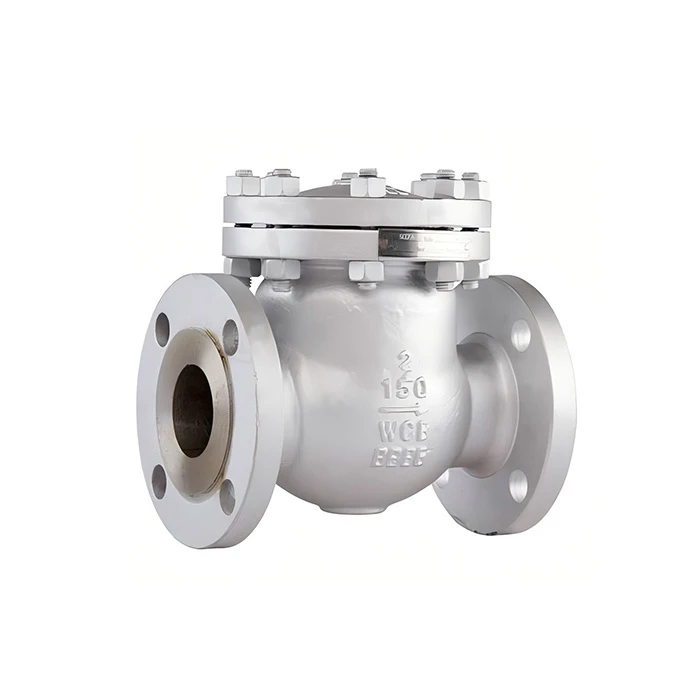

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of swing check valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable swing check valve, welcome to get quotation from our factory.
| Size Range | NPS 2" ~ 24" (DN50 ~ DN600) |
| Pressure Rating | Class150, Class300, Class600, Class900, Class1500 |
| Temperature Range | -29℃ ~ 425℃ (WCB Carbon Steel); -40℃ ~ 550℃ (Alloy Steel); -196℃ ~ 200℃ (Stainless Steel) |
| Connection Type | ANSI B16.5 RF/RTJ Flanged, ANSI B16.25 Butt Weld, NPT Thread optional |
| Body Material | A216-WCB, A105, WC6/WC9, CF8, CF8M, F304, F316 |
| Sealing Type | Metal hard seal standard, Stellite hardfaced sealing pair optional |
| Installation Mode | Horizontal pipeline priority; vertical installation available for upward flow direction |
| Execution Standard | ASME B16.34, ASME B16.10, ASME B16.5, API 6D, API 598 |
| Structural Feature | Full-port swing disc design with internal rocker arm and hinge pin assembly, bolted bonnet structure. Straight-through flow channel provides minimal flow resistance and large flow capacity. No internal spring structure, relying on medium flow and gravity to realize automatic opening and closing. Fully enclosed hinge structure avoids external leakage. Renewable seat design extends service life. High-pressure versions adopt pressure self-sealing bonnet for enhanced structural stability. |
| Suitable Media | Water, steam, thermal oil, compressed air, natural gas, crude oil and refined petroleum products. Widely applied in power plants, petrochemical refineries, oil & gas pipelines, heating systems and industrial process fluid transmission systems. |
Features
Swing check valve adopts standard full-bore straight-through flow channel without flow dead zone. The swing disc can be fully opened under forward medium flow, offering extremely low pressure loss and maximum flow capacity. Compared with lift-type check valves, it is more suitable for large-flow continuous circulation working conditions and long-distance fluid transmission pipelines, effectively improving pipeline transmission efficiency.
Different from spring-assisted check valves, ANSI swing check valve relies entirely on medium thrust and disc self-weight to complete opening and closing actions. Without internal spring components, it avoids spring fatigue, aging and failure under high temperature and high pressure conditions, ensuring long-term stable operation for high-temperature steam and hot oil working conditions.
The sealing pair is made of high-strength metal hard seal, and the seat and disc surface can be overlaid with Stellite cobalt-based alloy upon request. It features excellent anti-scouring, wear resistance and high-temperature resistance. The renewable seat structure allows on-site replacement and maintenance without cutting pipelines, greatly reducing later operation and maintenance costs.
The hinge pin and rocker arm assembly are completely enclosed inside the valve cavity without penetrating the valve body, eliminating external leakage risks. The bolted bonnet structure facilitates internal inspection and component replacement. High-pressure grade valves adopt self-sealing bonnet structure, which automatically strengthens sealing force with medium pressure, adapting to severe high-pressure working conditions.
Multiple material configurations are optional: carbon steel for conventional water, oil and gas; stainless steel for weakly corrosive media; alloy steel for ultra-high temperature working conditions. NACE MR0175 anti-sulfur upgrade is available for H₂S-containing sour service. Complies with full ANSI/API international standards, fully matching overseas EPC project acceptance requirements.
Typical Application Equipment
- Oil & gas long-distance transmission pipelines and station process systems
- Power plant high-temperature steam, thermal oil and circulating water systems
- Petrochemical refining, chemical process and fluid delivery equipment
- Industrial large-flow circulating pipeline and energy-saving transmission systems
- Overseas ANSI standard pipeline engineering and supporting facilities
Working Principle & Application Notes
Swing check valve is an automatic protection valve relying on medium flow force. Under normal forward flow, medium thrust pushes the swing disc to open and maintain pipeline circulation; when the flow stops or reverses, the disc closes rapidly by self-weight and backflow pressure to prevent medium backflow.Swing check valve is mainly designed for horizontal pipelines; vertical installation is only allowed for upward medium flow, reverse vertical installation is prohibited. Due to no spring buffering, it is not suitable for working conditions with severe water hammer and frequent rapid flow reversal. For strong impact and high-precision anti-backflow scenarios, silent lift check valve is recommended. All valves are strictly tested in accordance with API 598 to ensure zero leakage under rated pressure. Please confirm pressure class, end connection, material and medium parameters before ordering.
