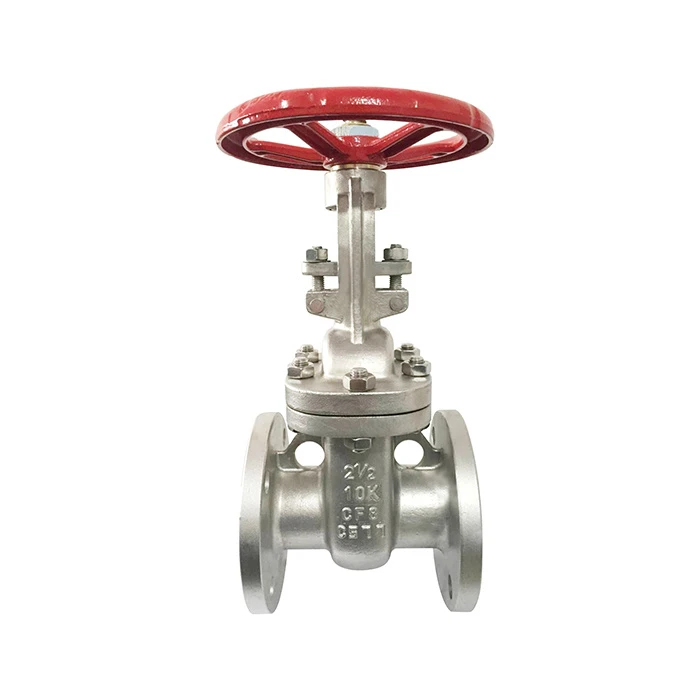

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of jis gate valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable jis gate valve, welcome to get quotation from our factory.
| Size Range | 15A ~ 600A (DN15 ~ DN600) |
| Pressure Rating | 10K, 20K, 30K, 45K (JIS nominal K-rating) |
| Temperature Range | -29℃ ~ 425℃ (SCPH2 Carbon Steel); -40℃ ~ 500℃ (SCS13 / SCS14 Stainless Steel) |
| Connection Type | JIS B2220 Flanged, Butt-Weld end optional |
| Body Material | SCPH2, SCS13, SCS14, cast iron optional |
| Operation Type | Manual handwheel, gear operated, electric actuator, pneumatic actuator optional |
| Structure Type | Flexible wedge / Solid wedge bolted bonnet, rising stem / non-rising stem optional, with back-seal structure |
| Execution Standard | JIS B2073, JIS B2083, JIS B2002, JIS B2220, JIS B2003 |
| Structural Feature | Full bore / reduced bore optional, straight flow channel with low flow resistance. Wedge gate construction provides bidirectional tight shut-off. Equipped with reliable back-seal to protect packing assembly. Seat faces overlaid with 13Cr or Stellite hard-alloy for anti-erosion performance. Bolted bonnet grants high structural rigidity and convenient on-site maintenance. |
| Suitable Media | Water, steam, oil, fuel oil, seawater, natural gas and general weakly corrosive fluid. Widely used in shipbuilding, power plant, Japanese-origin complete set equipment, petrochemical and Southeast-Asian process pipeline systems. |
Features
Internal straight-through flow passage minimizes pressure drop with nearly no flow dead zone, suitable for cut-off service for medium transmission pipelines. Full-bore version enables pipeline pigging operation; reduced-bore version features compact overall dimension and competitive cost for general isolating conditions.
Jis gate valve adopts flexible or solid wedge self-sealing construction, which compensates sealing clearance caused by medium pressure and thermal deformation. Wedge and seat surface overlaid with hard alloy delivers high hardness and anti-scouring property. Bidirectional bubble-tight sealing complies with JIS B2003 leakage requirements for reliable shut-off under full-closed position.
Built-in precision back-seal assembly prevents medium intrusion into packing chamber, protects stem and packing from fluid erosion and extends service life. Multi-layer flexible graphite or PTFE packing provides stable sealing under variable temperature-pressure conditions. Rising-stem variant displays opening-closing status visibly; non-rising-stem saves installation height for buried pipelines and compact cabin layout.
Designed and manufactured according to JIS B2073 / B2083. Face-to-face dimensions follow JIS B2002; flange dimensions conform to JIS B2220. Shell, back-seal and seat leakage tests are performed strictly per JIS B2003. Fully interchangeable with original Japanese-supplied valves for local and Southeast-Asian projects.
Supports multiple operation modes including handwheel, bevel gear, electric and pneumatic actuator for manual field operation and automatic control loops. Material portfolio covers carbon steel and stainless steel for steam, oil and seawater service. Marine-grade certification and anti-corrosion upgrade are available for ship-board working conditions.
Typical Application Equipment
- Ship-board piping and marine process systems
- Power-plant steam and water circulation pipeline networks
- Japanese-origin complete-set equipment supporting pipelines
- Petrochemical and fine-chemical fluid delivery facilities
- Southeast-Asian overseas projects adopting JIS specification
Working Principle & Application Notes
Jis gate valve realizes pipeline fluid isolation via vertical lifting motion of wedge gate. When fully open, wedge retracts completely out of flow path for negligible pressure loss; when fully closed, wedge contacts seat tightly to block medium flow. Jis gate valve is intended for full-open / full-closed isolation only, strictly prohibited for throttling or flow regulation duties. Long-term partial opening will generate high-velocity medium scouring and result in sealing-surface damage and internal leakage. For seawater or sour-H₂S containing fluids, special corrosion-resistant material upgrade shall be specified. Please provide K-rating, nominal size (A-size), working temperature, medium property and actuation type for correct valve selection prior to order placement.
