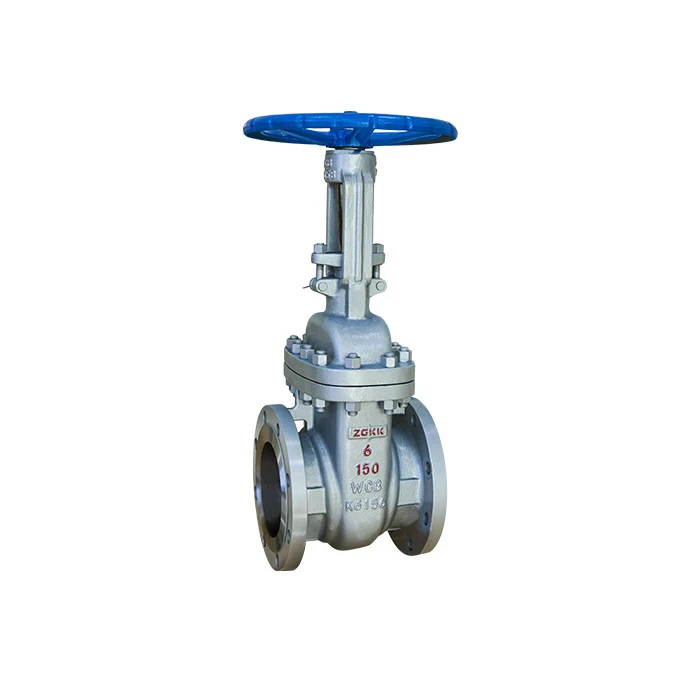

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of metal seated gate valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable metal seated gate valve, welcome to get quotation from our factory.
| Size Range | NPS 2" ~ 48" (DN50 ~ DN1200) |
| Pressure Class | Class150, 300, 600, 900, 1500, 2500 (ASME B16.34 pound-grade) |
| Temperature Range | -29℃ ~ 425℃ (WCB Carbon Steel); -40℃ ~ 550℃ (Alloy Steel); -196℃ ~ 200℃ (Stainless Steel) |
| Connection Type | ANSI B16.5 Flanged, Butt Weld ANSI B16.25, Threaded NPT/BSP optional |
| Body Material | A216-WCB, A105, A217-WC6/WC9, CF8, CF8M, F304, F316 |
| Operation Type | Manual handwheel, gear operated, electric actuator, pneumatic actuator optional |

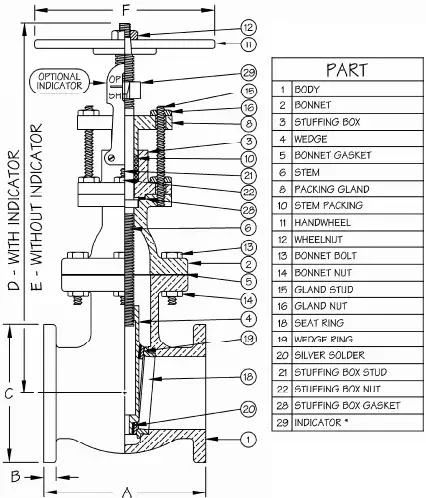

| Structure Type | Flexible wedge / Solid wedge bolted bonnet, rising stem / non-rising stem optional, with back seal structure |
| Execution Standard | API 600, ASME B16.34, ASME B16.10, ASME B16.5, API 598 |
| Structural Feature | Full bore / reduced bore optional, straight flow channel with minimal flow resistance. Wedge gate design provides bidirectional tight sealing. Equipped with reliable back seal to protect packing seal. Stellite hard-alloy overlay on seating surface for wear and corrosion resistance. Standard bolted bonnet structure ensures high structural rigidity and convenient maintenance. |
| Suitable Media | Water, steam, oil, natural gas, crude oil, refined chemical medium and other non-corrosive / weakly corrosive fluid. Widely applied in power plant, petrochemical, oil & gas pipeline, long-distance transmission and industrial pipeline systems. |
Features
The internal flow channel is straight through with almost no flow dead zone and extremely low fluid resistance. It is the preferred cut-off valve for long-distance fluid transmission pipelines. Full-bore type ensures unobstructed pipeline passage, convenient for pipeline pigging and cleaning; reduced-bore type features compact structure and lower cost for general cut-off working conditions.
Metal seated gate valve adopts flexible or solid wedge self-sealing structure, which can automatically compensate sealing gap caused by medium pressure and temperature deformation. The valve seat and wedge surface are overlaid with Stellite cobalt-based hard alloy, featuring high hardness, anti-scouring and anti-abrasion performance. Bidirectional sealing meets API 598 leakage standard, realizing reliable zero leakage in full closed state.
Built-in precision back seal structure effectively prevents medium from penetrating into the packing chamber, protects packing and stem from erosion, and extends service life. Multi-layer flexible graphite packing is adopted for stable sealing under high temperature and high pressure. The rising stem design clearly displays opening stroke; non-rising stem saves installation space for buried pipeline projects.
Designed and manufactured in full compliance with API 600 and ASME B16.34 standards. Face-to-face dimensions follow ASME B16.10, flange dimensions comply with ASME B16.5, and welding ends meet ASME B16.25. All shell, seal and back seal tests are implemented strictly according to API 598, fully matching international EPC project standard requirements.
Supports multiple actuation modes including manual handwheel, bevel gear, electric and pneumatic operation, adapting to on-site manual adjustment and automatic control system. Various material combinations cover low-temperature, normal-temperature, high-temperature and high-pressure working conditions. NACE MR0175 anti-sulfur version can be customized for H₂S sour service.
Typical Application Equipment
- Oil & gas long-distance transmission pipelines and station process systems
- Power plant high-temperature steam, water supply and circulation pipeline systems
- Petrochemical refining, chemical reaction and fluid delivery equipment
- Urban thermal pipe network, water treatment and industrial fluid cut-off systems
- Overseas EPC projects requiring ANSI/API standard pressure pipeline valves
Working Principle & Application Notes
Metal seated gate valve controls pipeline fluid on-off through vertical lifting of wedge gate. When fully open, the gate completely exits the flow channel with almost no pressure loss; when fully closed, the wedge fits tightly with the seat to block medium flow. Metal seated gate valve is only suitable for full open or full closed cut-off working conditions, strictly prohibited for flow regulation and throttling service. Long-term micro opening will cause high-speed medium scouring on the sealing surface and lead to seal damage. For sour H₂S-containing media, NACE anti-sulfur material upgrade is required. Please provide pressure class, working temperature, medium property and actuation mode for accurate sizing before ordering.
