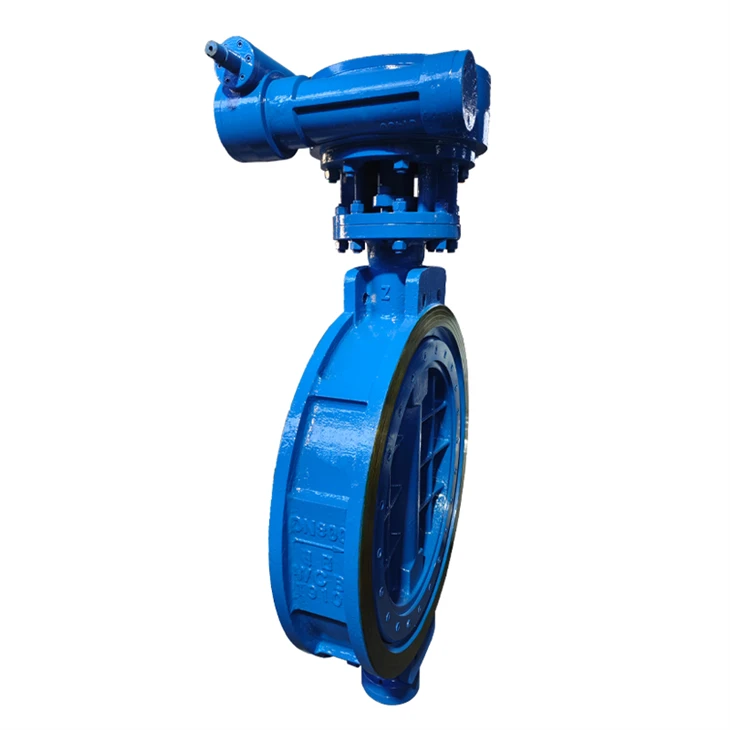

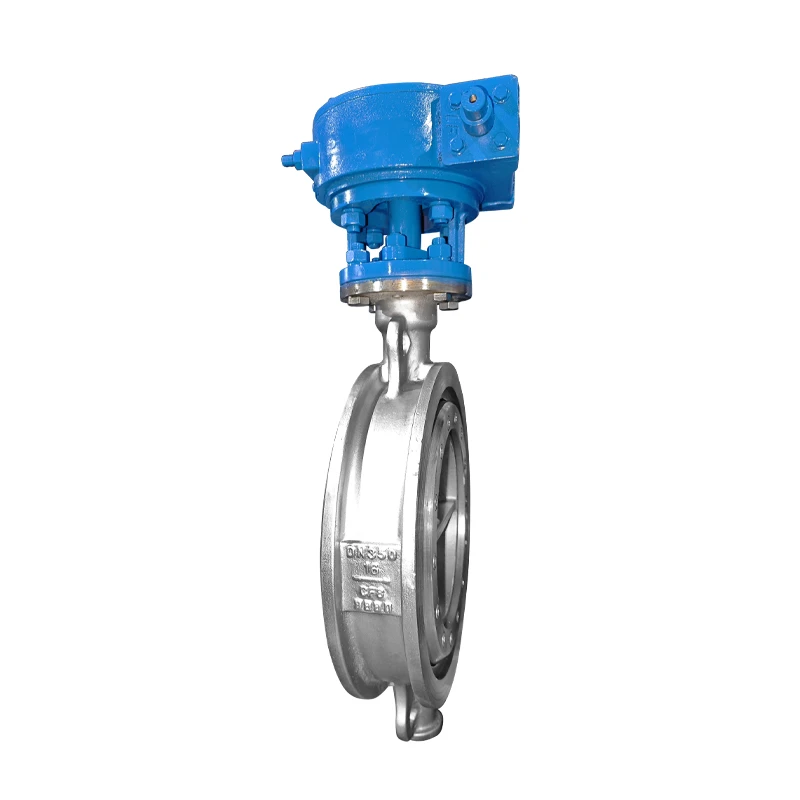

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of wafer triple offset butterfly valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable wafer triple offset butterfly valve, welcome to get quotation from our factory.

Size Range	DN50 ~ DN3000 (NPS 2" ~ 120")
Pressure Rating	Class 150~Class900 (PN10~PN150)
Temperature Range	-196℃ ~ 500℃ (Full Metal Hard Seal); cryogenic to high-temperature resistant
Connection Type	Wafer Type Connection, sandwiched installation between two pipeline flanges
Body Material	Carbon Steel, Stainless Steel, Alloy Steel, Duplex stainless steel etc.
Sealing Type	Metal to metal, Graphite Laminated, PTFE
Operation Type	Handwheel, Worm Gear, Electric, Pneumatic
Execution Standard	API609, MSS SP-68, EN593, EN12569, GOST, JIS, GB
Structural Feature	Wafer triple offset butterfly valve adopts compact wafer sandwiched-mount structure and unique three-eccentric spatial geometric design. It eliminates disc-seat friction throughout full opening-closing stroke for zero-wear operation. Conical metal-to-metal sealing pair delivers automatic pressure self-tightening compensation to achieve stable bidirectional zero-leakage under fluctuating pressure. The slim wafer-style body is clamped between two pipe flanges by full-length through bolts. Light-weight and space-saving structure, without integrated threaded lugs. Full-metal hard-sealing construction resists high-temperature, cryogenic, high-pressure and fine-particle erosion, avoiding soft-seal aging and deformation failure. Compact body design ensures stable long-cycle continuous operation for general industrial piping.
Suitable Media	High-temperature superheated steam, thermal oil, flue gas, compressed air, natural gas, crude oil, industrial slurry with fine particles, cryogenic liquefied gas and weakly corrosive fluid. Widely applied in petrochemical process pipelines, power plant auxiliary piping, metallurgical high-temperature pipelines, municipal pipe networks and general-purpose industrial isolation & throttling projects.

Features

1.Compact Wafer Sandwiched Installation, Cost-Effective

Slim wafer-type body without built-in threaded lugs, installed by long stud-bolts passing through two pipe flanges to clamp the valve in-between. Light-weight structure saves installation space and overall project cost compared with lug or flanged versions. Simple centering-clamping mounting procedure fits for standard ANSI and DIN flange mating. Note: wafer type must be clamped by double-side flanges; cannot be used for blind-end isolation or unilateral pressure-bearing service.

2.Zero-Friction Triple Offset Wear-Free Structure

Three-dimensional triple-offset geometry separates butterfly disc from seat surface at initial opening stroke, realizing zero-contact and friction-free full-stroke movement. No abrasive wear upon metal sealing surfaces, overcoming short-service-life weakness of conventional soft-seal and double-offset butterfly valves. Precisely machined conical sealing interface achieves progressive locking on closure with uniform stress distribution and good pressure-shock resistance.

3.Bidirectional Zero-Leakage Metal Hard Sealing

All-metal hard-seal assembly with optional Stellite alloy hard-facing treatment for seat face. Rising medium pressure generates self-tightening compensation force to offset thermal distortion and mechanical clearances. Sealing performance meets API 598 Class VI bidirectional bubble-tight shut-off. Maintains reliable tightness under high-temperature, high-pressure and pressure-surge conditions, far superior to ordinary soft-seal butterfly valves.

4.Ultra-Wide Temperature-Pressure Adaptability

Diversified material selections cover working conditions from cryogenic-196℃ up to 500℃. Carbon-steel, stainless-steel and alloy-steel bodies adapt to steam, oil-gas, corrosive and cryogenic liquefied media. Optimized slim-body casting enhances structural rigidity against thermal expansion-contraction deformation for general industrial continuous-operation environments.

5.Economical Solution for General-Purpose Isolation

Wafer design offers competitive cost advantage for full-flange-supported piping sections. Modular internal disc, stem and sealing components support on-line inspection and replacement. Zero-wear operation reduces maintenance frequency and life-cycle cost, ideal for large-quantity general-process industrial pipelines without blind-end isolation requirement.

Typical Application Equipment

- Petrochemical general-purpose process pipeline isolation and flow-control systems

- Power plant auxiliary steam, thermal-oil and circulating-medium pipelines

- Municipal heating, water supply and large-bore industrial pipe-net projects

- Metallurgical high-temperature flue gas, industrial gas and particle-containing-medium pipelines

- Industrial piping sections with double-side flange support, no dead-end isolation requirement

Working Principle & Application Notes

Wafer triple offset butterfly valve adopts worm-gear / electric / pneumatic / hydraulic actuator to drive 90-degree rotation of butterfly disc. Unique triple-offset geometry guarantees friction-free opening-closing movement. At fully closed position, conical metal sealing pair locks tightly with self-tightening compensation to block medium flow and realize bidirectional zero leakage; at fully-opened position, streamlined disc forms low-resistance straight-through flow-passage. Wafer type relies entirely on two mating pipe flanges for clamping support; it cannot bear unilateral pressure and is forbidden for pipeline terminal blind-end service. System must be fully shut-down and both-side flanges disassembled for valve removal or replacement. Stellite hard-facing is recommended for particle-containing and high-scouring media; cryogenic working scenarios shall adopt LCB low-temperature steel. Confirm pressure class, body material and actuation mode before ordering.

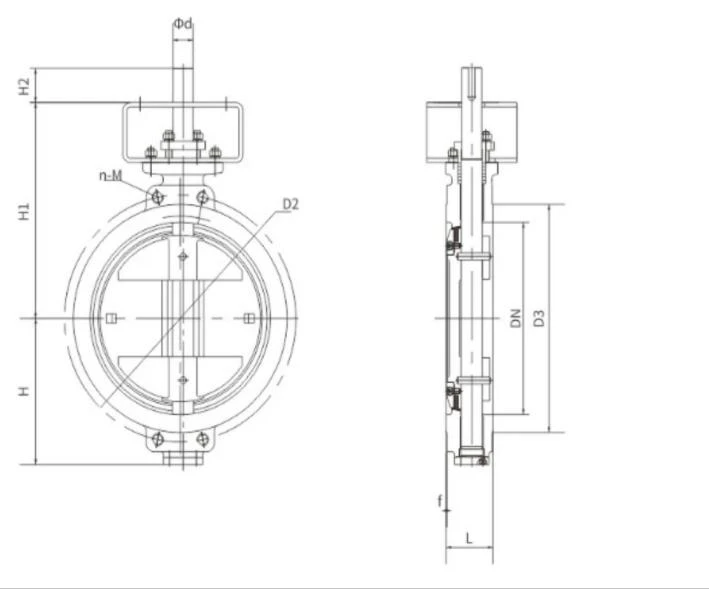

Drawings and Main Dimensions

product-709-589

Wafer Triple Offset Butterfly Valve Dimensions

PN	DN	Main Dimensions (mm)
(Mpa)	(mm)	L	H1	H2	D1	D2	N-Φ
0.6	80	64	100	230	150	130	4-18
	100	64	107	256	170	150	4-18
	125	70	123	288	200	180	4-18
	150	76	140	315	225	205	4-18
	200	89	180	350	280	260	4-18
	250	114	200	398	335	315	4-18
	300	114	250	431	395	370	4-22
	350	127	270	478	445	420	4-M20
	400	140	350	513	495	470	4-M20
	450	152	365	550	550	525	4-M20
	500	152	410	615	600	575	4-M20
	600	178	470	670	705	678	4-M24
	700	229	495	750	810	783	4-M24
	800	241	575	820	920	890	4-M27
	900	241	620	895	1020	990	4-M27
	1000	300	680	990	1120	1090	4-M27
1.0	80	64	100	230	160	130	4-18
	100	64	107	256	180	150	4-18
	125	70	123	288	210	180	4-18
	150	76	140	315	240	205	4-22
	200	89	180	350	295	260	4-22
	250	114	200	398	350	315	4-22
	300	114	250	431	400	370	4-22
	350	127	270	478	460	420	4-M20
	400	140	350	513	515	470	4-M24
	450	152	365	550	565	525	4-M24
	500	152	410	615	620	575	4-M24
	600	178	470	670	725	678	4-M27
	700	229	495	750	840	783	4-M27
	800	241	575	820	950	890	4-M30
	900	241	620	895	1050	990	4-M30
	1000	300	680	990	1160	1090	4-M33
1.6	80	64	100	230	160	130	4-18
	100	64	107	256	180	150	4-18
	125	70	123	288	210	180	4-18
	150	76	140	315	240	205	4-23
	200	89	180	350	295	260	4-23
	250	114	200	398	355	315	4-25
	300	114	250	431	410	370	4-25
	350	127	270	478	470	420	4-M22
	400	140	350	513	525	470	4-M27
	450	152	365	550	585	525	4-M27
	500	152	410	615	650	575	4-M30
	600	178	470	670	770	678	4-M33
	700	229	495	750	840	783	4-M33
	800	241	575	820	950	890	4-M36
	900	241	620	895	1050	990	4-M36
	1000	300	680	990	1170	1090	4-M39
2.5	80	64	100	230	160	130	4-18
	100	64	107	256	190	150	4-23
	125	70	123	288	220	180	4-25
	150	76	140	315	250	205	4-25
	200	89	180	350	310	260	4-25
	250	114	200	398	370	315	4-30
	300	114	250	431	430	370	4-30
	350	127	270	478	490	420	4-M30
	400	140	350	513	550	470	4-M33
	450	152	365	550	600	525	4-M33
	500	152	410	615	660	575	4-M33
The above dimensions are for reference only. Please contact our company for valve selection and structural dimensions applicable to actual working conditions.
