Description

Technical Parameters

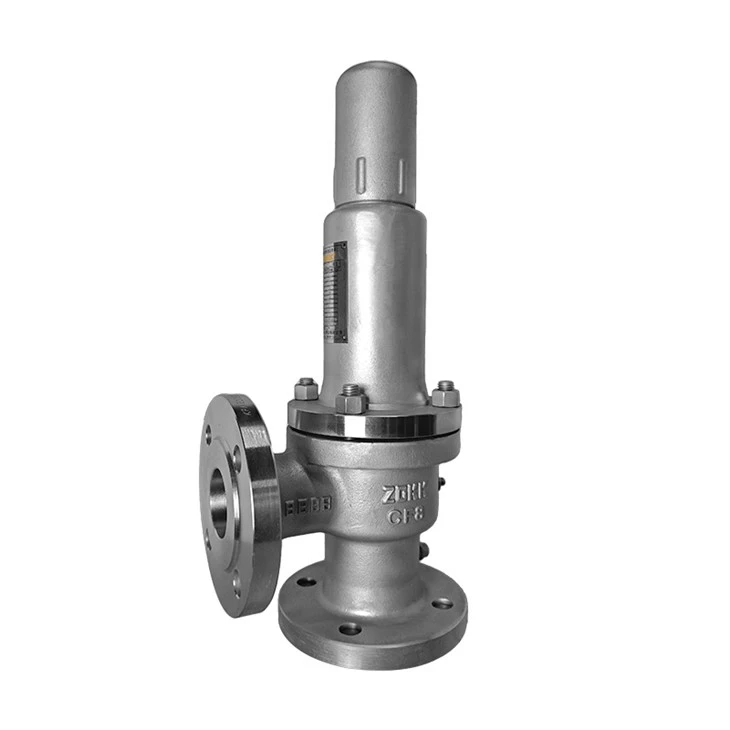

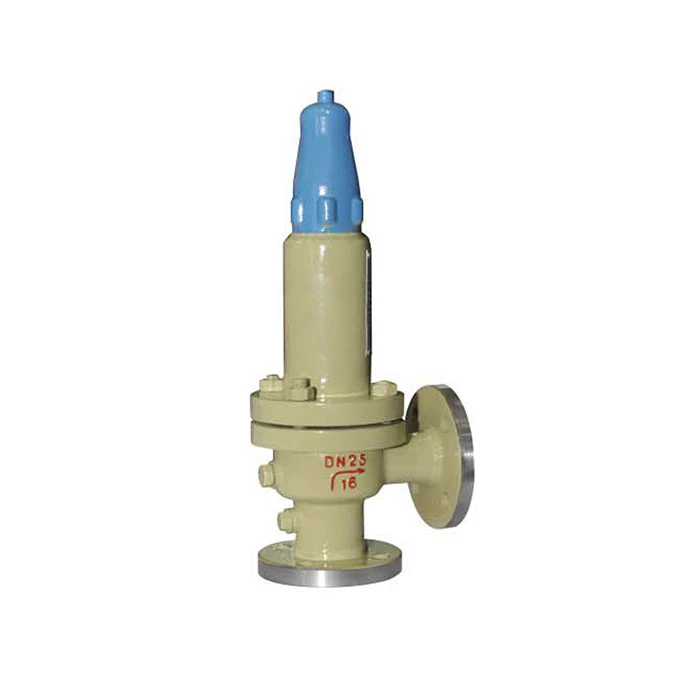

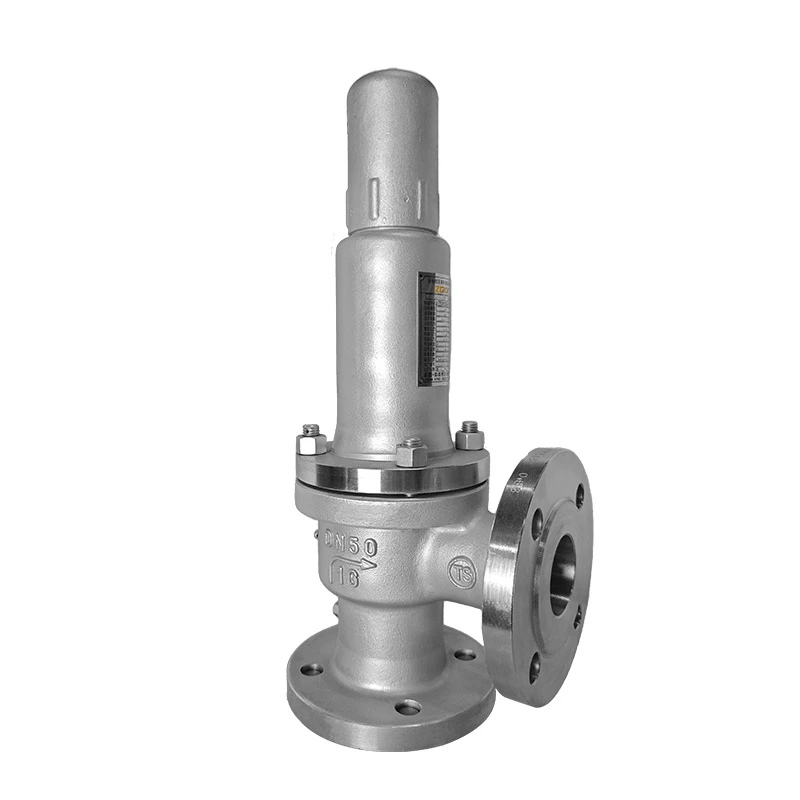

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of closed bonnet low lift safety valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable closed bonnet low lift safety valve, welcome to get quotation from our factory.

Size Range	3/4" ~ 12"
Pressure Rating	PN16 ~ PN100
Temperature Range	≤300℃
Connection Type	Flanged
Material	Carbon Steel / Alloy Steel / Stainless Steel
Operation	Spring-Loaded, Closed Bonnet, Low Lift
Suitable Medium	Water, Air, Steam, Oil and Other Non-Corrosive Media; Stainless Steel for Weakly Corrosive Media

Features

1.Professional Micro-lift Liquid-Dedicated Structure

Different from full-lift gas-specialized valves, A41Y adopts standard micro-lift design with tiny and stable opening stroke. It avoids instantaneous large-flow discharge and system pressure shock caused by full-lift valves, effectively protecting liquid pipeline and pressure vessel accessories from impact damage. It is the standard dedicated safety valve for liquid phase overpressure protection in industrial specifications.

2.Leak-tight Closed Bonnet No-wrench Design

Full closed bonnet completely isolates internal spring components from external dust and moisture, preventing spring jamming and performance attenuation. Without manual wrench structure, the overall sealing performance of the valve body is further improved. All liquid medium is discharged through closed pipelines, which is safe and environmentally friendly, and suitable for sealed liquid systems that do not require on-site manual test.

3.Stellite Hard Alloy Overlay Sealing Pair

The nozzle and valve disc sealing surface are overlaid with high-performance Stellite cobalt-based hard alloy. It has excellent anti-scouring and wear-resistant properties for long-term liquid medium scouring. The sealing performance meets API 527 standard, maintaining zero leakage under rated working pressure, effectively solving the problem of easy seat leakage of ordinary liquid safety valves.

4.Stable Mechanical Automatic Operation

Pure spring mechanical drive, no external power supply or auxiliary control required. The set pressure can be precisely adjusted on site according to liquid system working conditions. When the system liquid pressure exceeds the preset value, the valve opens slightly and stably for pressure relief; when the pressure returns to the qualified range, it automatically resets and closes tightly, with stable operation and low failure rate.

5.Diversified Material Adaptation

WCB carbon steel is used for conventional water and oil medium; CF8/CF8M stainless steel is available for weakly corrosive liquid working conditions. NACE MR0175 anti-sulfur materials can be customized for special liquid sour service. Supports national standard PN and ASME B16.5 pound-grade flanges to meet different project installation requirements.

Typical Application Equipment

- Industrial water pressure vessels, circulating water pipeline systems

- Oil storage tanks, light hydrocarbon liquid buffer tanks and oil delivery pipelines

- Hydraulic pressure equipment and industrial liquid pressure bearing devices

- Liquid phase process systems requiring stable gradual pressure relief and closed discharge

- Industrial equipment without on-site manual valve test requirements

Working Principle & Application Notes

Closed bonnet Low lift Safety Valve is a special pressure relief device for industrial liquid systems. Under normal working pressure, the spring force tightly presses the valve disc on the nozzle seat to maintain zero leakage. When the liquid system pressure rises to the set pressure, the medium thrust overcomes the spring load, and the valve opens slightly for slow and stable pressure relief to avoid system pressure fluctuation. When the pressure drops to the reset blow-down value, the spring pushes the valve disc back to the seat for tight reseating. This conventional non-bellows structure is affected by fluctuating back pressure; WA41Y bellows balanced type is recommended for working conditions with large back pressure changes. Closed bonnet Low lift Safety Valve is strictly dedicated to liquid media; it is prohibited for steam and gas phase working conditions. Ordinary A41Y series are not qualified for H₂S-containing sour liquid service without NACE material upgrade. Provide set pressure, working temperature, liquid medium characteristics and relief demand for accurate sizing before ordering.

Main Parts & Materials
Part Name	A41H-C/KA41Y-C	A41Y-P/KA41Y-P	A41Y-R/KA41Y-R
Body	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Seat	ZG2Cr13/1Cr18Ni9Ti	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Adjusting Ring	ZG2Cr13/1Cr18Ni9Ti	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Disc	2Cr13/1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Guide Bush	ZG2Cr13/1Cr18Ni9Ti	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
Bonnet	ZG230-450	ZG230-450	ZG230-450
Spring	50CrVA	50CrVA, Teflon Coated	50CrVA, Teflon Coated
Stem	2Cr13	2Cr13	1Cr18Ni12Mo2Ti
Adjusting Screw	45	2Cr13	2Cr13
Cap	ZG200-400	ZG200-400	ZG200-400
Sealing Surface	D507 Hardfacing Overlay	Co-based Hard Alloy Overlay	-

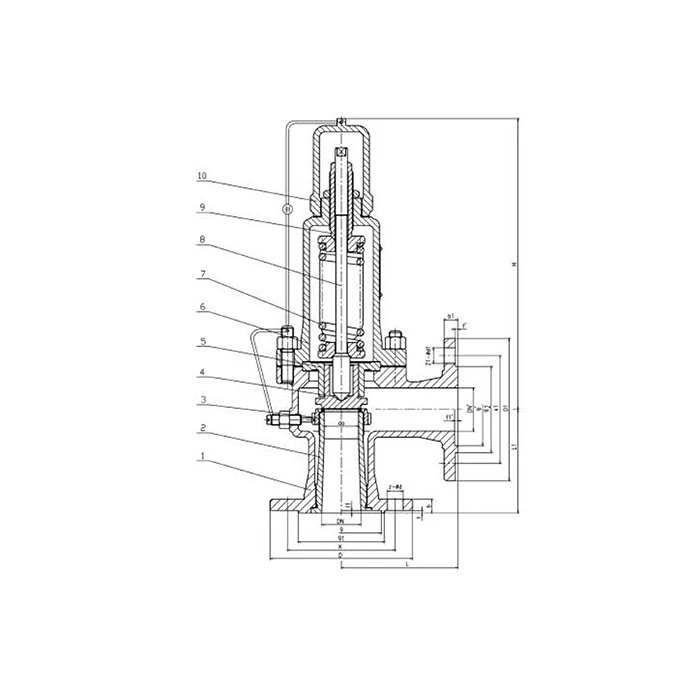

Closed Bonnet Low Lift Safety Valve Dimensions (mm)

Type	(DN)	do	D	K	g	g1	b	f	f1	Z-φd	DN'	D1	k1	g2	g'	b1	f	f1	Z 1-φd1	L	L1	≈H
A41H-16C A41Y-16P A41Y-16R KA41Y-16C KA41Y-16P	20	15	105	75		55	16	2		4-16	20	105	75	55		16	2		4-14	100	85	276
	25	20	115	85		65	16	2		4-14	25	115	85	65		16	2		4-14	100	85	276
	32	25	140	100		78	18	2		4-18	32	140	100	78		18	2		4-18	115	100	285
	40	32	150	110		85	18	3		4-18	40	150	110	85		18	3		4-18	120	110	292
	50	40	165	125		100	20	3		4-18	50	165	125	100		20	3		4-18	135	120	370
	65	50	185	145		120	20	3		4-18	65	185	145	120		20	3		4-18	140	130	375
	80	65	200	160		135	20	3		8-18	80	200	160	135		20	3		8-18	160	135	373
	100	80	220	180		155	22	3		8-18	100	220	180	155		22	3		8-18	170	160	513
	125	100	250	210		185	22	3		8-18	125	250	210	185		22	3		8-18	190	190	560
	150	125	285	240		210	24	3		8-23	150	285	240	210		24	3		8-23	205	195	570
	200	150	340	295		265	26	3		12-23	200	340	295	265		26	3		12-23	240	230	717
	250	200	405	355		320	30	3		12-26	250	405	355	320		30	3		12-26	350	320	940
	300	250	460	410		375	30	4		12-26	300	460	410	375		30	4		12-26	350	320	980
A41H-25 A41Y-25P A41Y-25R KA41Y-25 KA41Y-25P	20	15	105	75		55	16	2		4-14	20	105	75	55		16	2		4-14	100	85	276
	25	20	115	85		65	16	2		4-14	25	115	85	65		16	2		4-14	115	100	276
	32	25	140	100		78	18	2		4-18	32	140	100	78		18	2		4-18	120	110	285
	40	32	150	110		85	18	3		4-18	40	150	110	85		18	3		4-18	135	135	290
	50	40	165	125		100	20	3		4-18	50	165	125	100		20	3		4-18	135	140	370
	65	50	185	145		120	22	3		8-18	65	185	145	120		20	3		1-18	140	130	375
	80	65	200	160		135	24	3		8-18	80	200	160	135		20	3		8-18	160	135	373
	100	80	230	190		160	24	3		8-23	100	220	180	155		20	3		8-18	170	160	513
	125	100	270	220		188	28	3		8-26	125	250	210	185		22	3		8-18	190	190	560
	150	125	300	250		218	30	3		8-26	150	285	240	210		24	3		8-23	205	195	570
	200	150	360	310		278	34	3		12-26	200	340	295	265		26	3		12-23	240	230	717
	250	200	425	370		332	36	3		12-30	250	405	355	320		30	3		12-26	350	32	940
	300	250	485	430		390	40	4		12-30	300	460	410	375		30	4		12-26	350	320	980
A41H-40 A41Y-40P A41Y-40R KA41Y-40 KA41Y-40P	20	15	105	75	51	55	16	2	4	4-14	20	105	75	55		16	2		4-14	100	85	276
	25	20	115	85	58	65	16	2	4	4-14	25	115	85	65		16	2		4-14	100	85	276
	32	25	140	100	66	78	18	2	4	4-18	32	140	100	78		18	2		4-18	115	100	285
	40	32	150	110	76	85	18	3	4	4-18	40	150	110	85		18	3		4-18	120	110	292
	50	40	165	125	88	100	20	3	4	4-18	50	165	125	100		20	3		4-18	135	120	370
	65	50	185	145	110	120	22	3	4	8-18	65	185	145	120		20	3		4--18	140	130	375
	80	65	200	160	121	135	22	3	4	8-18	80	200	160	135		20	3		8-18	160	135	373
	100	80	235	190	150	160	24	3	4.5	8-23	100	220	180	155		22	3		8-18	170	160	513
	125	100	270	220	173	188	28	3	4.5	8-26	125	250	210	185		22	3		8-18	190	190	560
	150	125	300	250	204	218	30	3	4.5	8-26	150	285	240	210		24	3		8-23	205	195	570
	200	150	375	320	260	282	38	3	4.5	12-30	200	340	295	265		26	3		12-23	240	230	717
	250	200	450	385	313	345	42	3	4.5	12-34	250	405	355	320		30	3		12-26	350	320	940
	300	250	515	450	364	408	46	4	4.5	16-34	300	460	410	375		30	4		12-26	350	320	980
A41H-64 A41Y-64 A41Y-64P A41Y-64R	20	15	130	90	51	68	20	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	268
	25	20	140	100	58	78	22	2	4	4-18	25	115	85	65	58	16	2	4	4-14	100	95	268
	32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	279
	40	32	170	125	76	95	24	3	4	4-23	40	150	110	85	76	18	3	4	4-18	135	115	330
	50	40	180	135	88	105	26	3	4	4-23	50	165	125	100	88	20	3	4	4-18	160	125	360
	65	50	205	160	110	130	28	3	4	8-23	65	185	145	120	110	22	3	4	8-18	175	160	503
	80	65	215	170	121	140	30	3	4	8-23	80	200	160	135	121	22	3	4	8-18	175	160	498
	100	80	250	200	150	168	32	3	4.5	8-26	100	235	190	160	150	24	3	4.5	8-23	190	180	530
	150	100	345	280	204	240	38	3	4.5	8-34	150	300	250	218	204	30	3	4.5	8-26	280	260	657
A41H-100 A41Y-100 A41Y-100P A41Y-100R	20	15	130	90	51	68	22	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	268
	25	20	140	100	58	78	24	2	4	4-23	25	115	85	65	58	16	2	4	4-14	100	95	268
	32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	279
	40	32	170	125	76	95	26	3	4	4-26	40	150	110	85	76	18	3	4	4-18	135	115	330
	50	40	195	145	88	112	28	3	4	8-26	50	165	125	100	88	20	3	4	4-18	160	125	360
	65	50	220	170	110	138	32	3	4	8-26	65	185	145	120	110	22	3	4	8-18	175	160	503
	80	65	230	180	121	148	34	3	4	8-26	80	200	160	135	121	22	3	4	8-18	175	160	498
	100	80	265	210	150	172	38	3	4.5	8-30	100	235	190	160	150	24	3	4.5	8-23	190	180	530
	150	100	355	290	204	250	46	3	4.5	12-34	150	300	250	218	204	30	3	4.5	8-26	280	260	657
