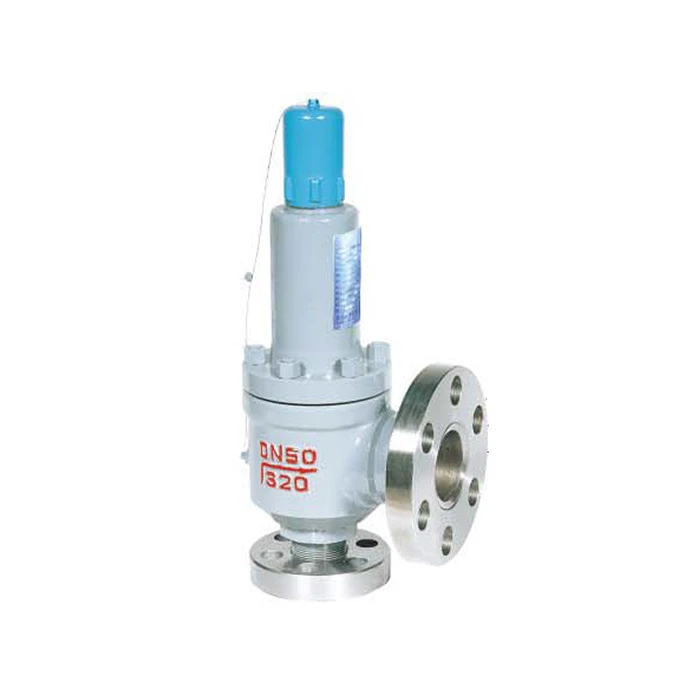

1. Closed bonnet keeps spring chamber free of dust and foreign debris
2. Spring-loaded full-lift design for large-capacity overpressure relief
3. Stellite 6 hard-faced sealing for erosion resistance & tight sealing
4. Adjustable nozzle ring for blow-down adjustment
5. Optional lifting lever for field test
6. API 520 / API 526 compliant, reliable reseating performance
7. Suitable for high-pressure gas, compressed air and hydrocarbon service
Features
1. Closed-bonnet structure prevents dust and external contaminants entering spring chamber.
2. Spring-loaded full-lift construction, large discharge capacity for fast over-pressure relief.
3. Sealing surfaces hard-faced with Stellite 6 cobalt-based alloy, excellent erosion resistance and tight shut-off.
4. Adjustable nozzle ring for blow-down pressure tuning to meet various working conditions.
5. Optional lifting lever for on-site functional inspection.
6. Strictly manufactured to API 520 & API 526, stable reseating performance after pressure relief.
Applications
Pressure safety valve is used for overpressure protection of high-pressure pressure vessels and pipelines. It automatically opens to discharge medium once system pressure exceeds set pressure, preventing equipment damage and ensuring safety of plant and personnel.Suitable media: high-pressure process gas, compressed air, nitrogen, hydrogen, hydrocarbon oil-gas.Pressure safety valve widely applied in oil-refinery, chemical industry, coal chemical, storage tanks, compressor packages and high-pressure piping systems.
A42Y-160/320 type are used for the equipment and pipeline ofthe air,N2,H2 mixed gas, etc. medium what the workingtemperature are less than 200C.A42Y-160P/320P.A42Y160R/320R type are used for the equipment and pipeline of thequality with corrode medium what the working temperature areless thorn 200°C.Take for extra pressure protection devices.Flange connecting dimensions of comply with Standard ofJB/T2769-2008.

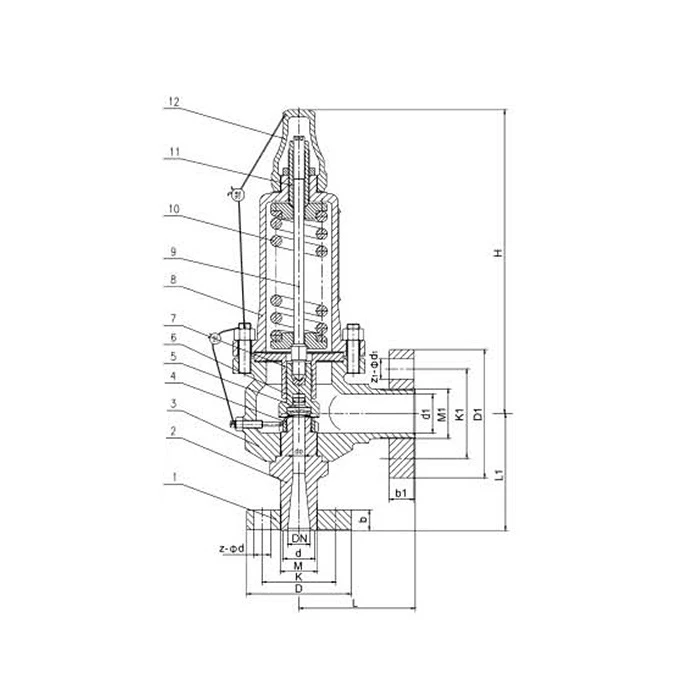

Materials For Main Parts
|
NO. |
Name of part |
Materials |
||
|
A48Y-C |
A44Y-P |
A44Y-R |
||
|
1 |
Flange |
35/35CrMoA |
20Cr13 |
304 |
|
2 |
Seat |
20Cr13 |
304 |
316 |
|
3 |
Body |
40 |
304 |
316 |
|
4 |
Adjusting ring |
20Cr13 |
304 |
316 |
|
5 |
Disc |
20Cr13 |
304 |
316 |
|
6 |
Disc holder |
20Cr13 |
304 |
316 |
|
7 |
Guide sleeve |
20Cr13 |
304 |
316 |
|
8 |
Bonnet |
ZG230-450 |
ZG230-450 |
ZG230-450 |
|
9 |
Stem |
20Cr13 |
304 |
304 |
|
10 |
Spring |
50CrVA |
50CrVA Coated Teflon |
50CrVA Coated Teflon |
|
11 |
Adjusting bolt |
45 |
20Cr13 |
20Cr13 |
|
12 |
Cap |
ZG200-400 |
ZG200-400 |
ZG200-400 |
|
Sealing surface of material |
Co Depositing stelite |
|||
Pressure Safety Valve Dimensions (mm)
|
Type |
DN |
do |
d |
M |
D |
K |
Z-φd |
b |
d1 |
M1 |
D1 |
kl |
Z1-φdl |
b1 |
L |
L1 |
≈H |
|
A42Y-160 |
15 |
8 |
20 |
M24×2 |
60 |
95 |
3-18 |
20 |
29 |
M42×2 |
80 |
115 |
4-18 |
22 |
95 |
100 |
220 |
|
20 |
8 |
27 |
M33×2 |
68 |
105 |
3-18 |
20 |
29 |
M42×2 |
80 |
115 |
4-18 |
22 |
95 |
100 |
220 |
|
|
25 |
14 |
28 |
M33×2 |
68 |
105 |
3-18 |
20 |
50 |
M64×3 |
115 |
165 |
6-26 |
32 |
150 |
150 |
280 |
|
|
32 |
15 |
37 |
M42×2 |
80 |
115 |
4-18 |
22 |
50 |
M64×3 |
115 |
165 |
6-26 |
32 |
150 |
150 |
390 |
|
|
40 |
20 |
47 |
M52×2 |
115 |
165 |
6-26 |
28 |
65 |
M80×3 |
145 |
200 |
6-29 |
40 |
180 |
165 |
495 |
|
|
50 |
25 |
59 |
M64×3 |
115 |
165 |
6-26 |
32 |
80 |
M100×3 |
170 |
225 |
6-33 |
50 |
190 |
190 |
510 |
|
|
A42Y-320 |
15 |
8 |
27 |
M33×2 |
68 |
105 |
3-18 |
20 |
29 |
M42×2 |
80 |
115 |
4-18 |
22 |
95 |
100 |
220 |
|
20 |
8 |
30 |
M33×2 |
75 |
110 |
3-18 |
22 |
29 |
M42×2 |
80 |
115 |
4-18 |
22 |
95 |
100 |
220 |
|
|
25 |
14 |
35 |
M42×2 |
80 |
115 |
4-18 |
22 |
50 |
M64×3 |
115 |
165 |
6-26 |
32 |
150 |
150 |
280 |
|
|
32 |
15 |
41 |
M48×2 |
95 |
135 |
4-22 |
25 |
50 |
M64×3 |
115 |
165 |
6-26 |
32 |
150 |
150 |
390 |
|
|
40 |
20 |
58 |
M64×2 |
115 |
165 |
6-26 |
32 |
65 |
M80×3 |
145 |
200 |
6-29 |
40 |
180 |
165 |
495 |
|
|
50 |
25 |
70 |
M80×2 |
145 |
200 |
6-29 |
40 |
80 |
M100×3 |
170 |
225 |
6-33 |
50 |
190 |
190 |
510 |
|
|
A42Y-400 |
32 |
15 |
41 |
M48×2 |
95 |
135 |
4-22 |
25 |
50 |
M64×3 |
115 |
165 |
6-26 |
32 |
190 |
190 |
397 |
