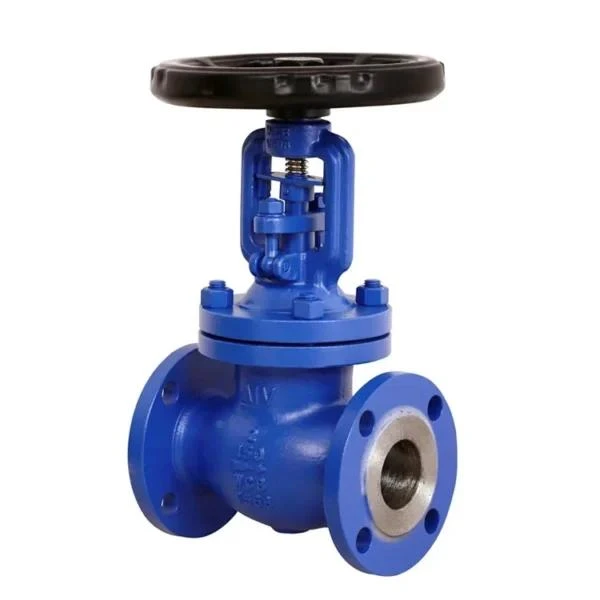

Bellows globe valve is a low-emission industrial stop-and-regulate valve. A metallic bellows isolates the valve stem from process medium to eliminate stem packing leakage, built to ANSI-compliant specifications. Bellows globe valve widely selected for toxic, flammable, volatile and high-purity fluid services.
Details
- Pressure Class: Class 150 ~900 LB
- Size Range: NPS 1/2" ~ NPS 12" (DN15-DN300)
- Temperature Range: -29 ℃ ~ +350 ℃, subject to body and bellows material
- Body Materials: WCB carbon steel, LCB low-temperature steel, CF8 / CF8M stainless steel, WC6 / WC9 Cr-Mo steel, duplex steel and other special alloys
- Bellows Material: Multi-layer 316L stainless steel (standard); Inconel 625, Hastelloy C-276 for corrosive-service options
- Actuation: Manual handwheel; gear operator, electric or pneumatic actuator available as options
Key Advantages
1.Zero stem external leakage. Well suited for toxic, volatile, flammable and high-purity fluids, meeting VOC emission-control requirements.
2.Dual-seal protection; packing backup prevents catastrophic leakage upon bellows failure.
3.Capable of tight shut-off as well as continuous flow regulation.
4.OS&Y rising-stem provides visible valve position feedback.
5.Fully compatible with ASME B16.5 for overseas EPC and petrochemical projects.
Limitations
Bellows has finite fatigue cycle life. Frequent rapid-cycling service requires fatigue-life verification. Not recommended for heavy particulate-laden media, as solid particles may damage bellows elements.
|
Technical specificastion |
|
|
Structural formation |
BB-BG-OS&Y |
|
Driving maner |
Hand-operated |
|
Electric-actuated |
|
|
Design standard |
AMSE B16.10,BS1873 |
|
Faceto face |
ASME B16.10 |
|
Flange ends |
ASME B16.5 |
|
Test&inspection |
API598 |
|
Products performance specification |
||||
|
Nominal pressure(LB) |
Shell test(MPa) |
Sealing test(MPa) |
Suitable temp.(℃) |
Suitable madium |
|
150 |
3.0 |
2.2 |
≤350℃ |
|
|
300 |
7.5 |
5.5 |
||
|
600 |
15.0 |
11.0 |
||
|
900 |
22.5 |
16.5 |
||
|

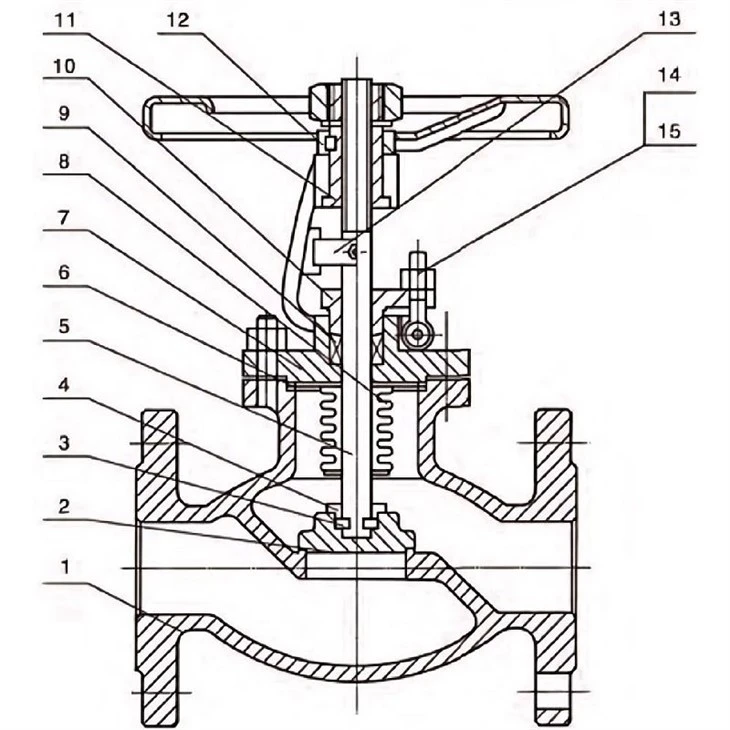

Main parts materials |
||
|
NO. |
Part name |
Material |
|
1 |
Body |
ASTM A216-WCB |
|
2 |
Disc |
ASTM A182-Gr.F6a ASTM A182-F22 |
|
3 |
Split ring |
ASTM A182-Gr.F6a ASTM A182-F22 |
|
4 |
Disc bushing |
ASTM A182-Gr.F6a ASTM A182-F22 |
|
5 |
Stem |
ASTM A182-Gr.F6a ASTM A182-F22 |
|
6 |
Gasket |
Flexible Graphite+stainless steel,PTFE |
|
7 |
Bonnet |
ASTM A216-WCB |
|
8 |
Bellow assemble |
ASTM A182-F304,F316,F321,F304L,F316L |
|
9 |
Packing |
Flexible Graphite,PTFE |
|
10 |
Gland |
ASTM A216-WCB |
|
11 |
Yoke nut |
Copper alloyZQA19-4 |
|
12 |
Handwheel |
ASTM A536 Gr.60-40-18,A216-WCB |
|
13 |
Guiding piece |
45,WCB,304,316,304L,316L |
|
14 |
Bolt |
ASTM A193-B7,A193-B8,A193-B8M |
|
15 |
Nut |
ASTM A194-2H,A194-8,A194-8M |
|

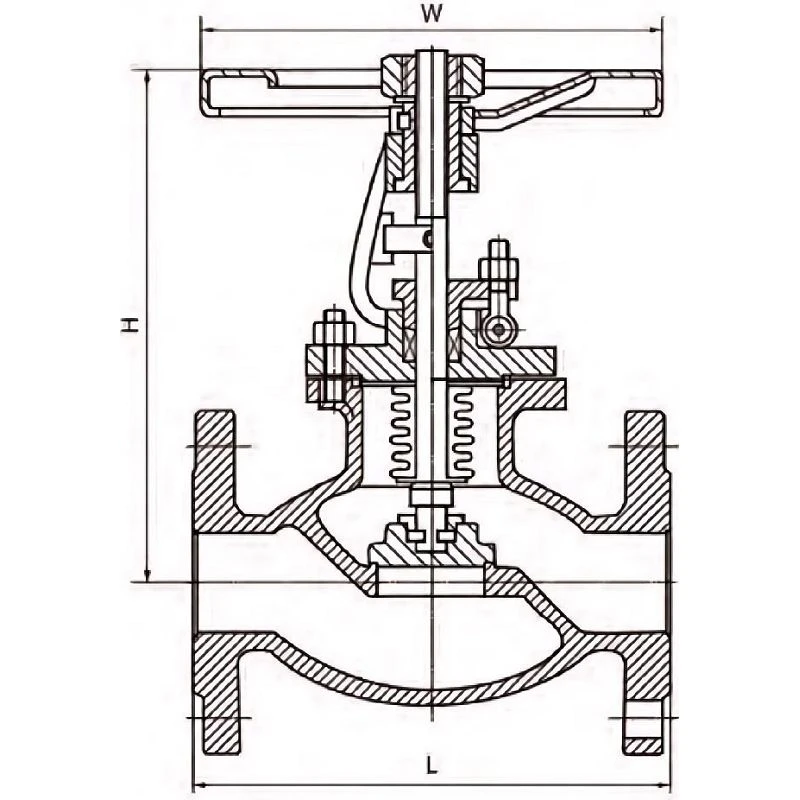

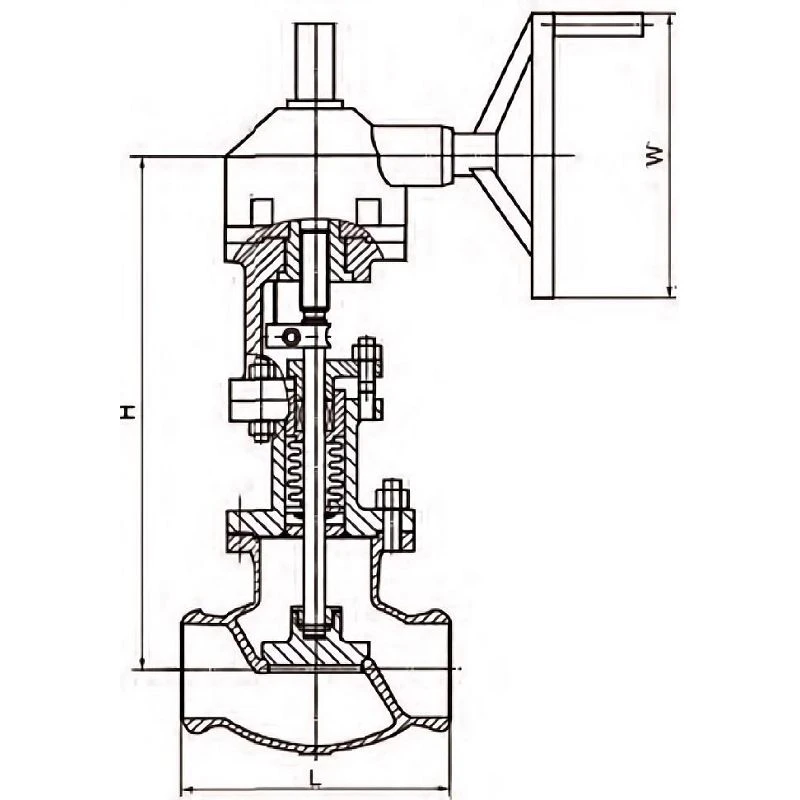

Bellows Globe Valve Main external and connection dimension Unit:mm |
||||||||||||||||
|
Model |
ZDAWJ41-150LB |
|||||||||||||||
|
Pressure |
150LB |
|||||||||||||||
|
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
|
L |
108 |
117 |
127 |
140 |
165 |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
787 |
|
|
H |
241 |
241 |
241 |
280 |
286 |
368 |
387 |
400 |
457 |
520 |
609 |
698 |
762 |
876 |
990 |
|
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
320 |
340 |
400 |
450 |
450 |
450 |
|
|
Weight(Kg) |
4 |
5 |
6 |
10 |
13 |
18 |
30 |
35 |
55 |
75 |
104 |
200 |
300 |
390 |
610 |
|
|
Model |
ZDAWJ41-300LB |
|||||||||||||||
|
Pressure |
300LB |
|||||||||||||||
|
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
1/4 |
1/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
|
L |
152 |
178 |
203 |
215 |
229 |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
762 |
|
|
H |
241 |
241 |
283 |
320 |
322 |
399 |
438 |
450 |
584 |
610 |
660 |
762 |
850 |
1085 |
1187 |
|
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
320 |
340 |
400 |
450 |
450 |
450 |
|
|
Weight(Kg) |
6 |
7 |
10 |
15 |
20 |
25 |
30 |
52 |
88 |
115 |
160 |
259 |
420 |
595 |
876 |
|
|
Model |
ZDAWJ41-600LB |
|||||||||||||||
|
Pressure |
600LB |
|||||||||||||||
|
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
|
L |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
|
|
H |
240 |
280 |
320 |
320 |
390 |
430 |
480 |
508 |
635 |
750 |
914 |
1016 |
1219 |
1330 |
1560 |
|
|
W |
140 |
140 |
160 |
160 |
180 |
180 |
250 |
250 |
350 |
400 |
450 |
500 |
600 |
720 |
760 |
|
|
Weight(Kg) |
7 |
10 |
16 |
22 |
29 |
35 |
50 |
90 |
150 |
230 |
300 |
510 |
850 |
1120 |
1400 |
|
|
Model |
ZDAWJ41-900LB |
|||||||||||||||
|
Pressure |
900LB |
|||||||||||||||
|
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
1/4 |
1/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
|
L |
229 |
229 |
254 |
279 |
305 |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
965 |
1029 |
|
|
H |
280 |
330 |
350 |
430 |
508 |
569 |
430 |
635 |
774 |
860 |
1040 |
1330 |
1560 |
1650 |
1780 |
|
|
W |
160 |
160 |
180 |
180 |
250 |
250 |
320 |
350 |
450 |
550 |
600 |
720 |
760 |
820 |
890 |
|
|
Weigh(Kg) |
10 |
16 |
23 |
37 |
49 |
65 |
75 |
120 |
200 |
350 |
410 |
790 |
1300 |
1500 |
1800 |
|
