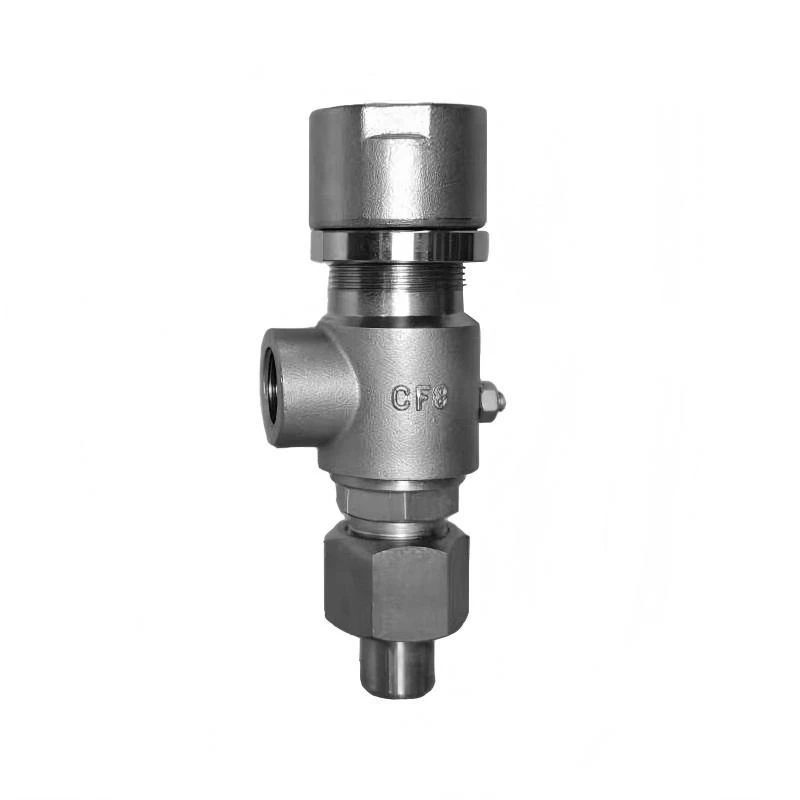

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of safety valve on air compressor in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable safety valve on air compressor, welcome to get quotation from our factory.
| Size Range | 1/2" ~ 3" |
| Pressure Rating | PN16 ~ PN320 |
| Temperature Range | ≤200℃ |
| Connection Type | Threaded |
| Material | Carbon Steel / Stainless Steel |
| Operation | Automatic |
| Suitable Medium | Gas, Steam, Liquid, Ammonia, Petroleum Gas, Corrosive Gases or Liquids |
Features
Closed-bonnet Micro-lift Spring-loaded Compact Threaded Structure
Adopts fully closed bonnet compact threaded construction without exposed spring parts, preventing dust and moisture intrusion. Micro-lift structure provides gentle and stable pressure release without pressure shock to small-size piping and pressure vessels. Small overall size, lightweight, suitable for limited-space installation conditions.
External Thread Connection Design
External thread inlet connection supports BSPP or NPT thread options for quick assembly on small-bore pipelines, compressors and pressure vessels. Threaded connection realizes simple installation without flange pairing, widely used for skid-mounted equipment and auxiliary safety protection points.
Hard Alloy Overlay Sealing Surface
Valve seat and disc are overlaid with Stellite hard alloy. The sealing surface delivers good anti-erosion and wear-resistant performance. It maintains reliable tight sealing under rated working pressure, resisting medium scouring and extending service life for frequent cyclic pressure-relief working conditions.
Fully Mechanical Automatic Operation
Pure spring-driven mechanical operation without external power source. Set pressure can be accurately adjusted on-site. When system pressure exceeds preset value, the valve opens slightly for steady pressure relief; when pressure falls back to allowable range, the valve automatically resets and closes. Simple structure, stable performance and convenient maintenance.
Typical Application Equipment
- Small-bore pressure vessels, compressors and buffer tanks
- LPG storage devices, light oil skid-mounted equipment
- Instrument auxiliary pipelines and small thermal exchange equipment
- Petrochemical and general-industry compact pressure-bearing units
- Auxiliary overpressure protection for small-size liquid and gas piping systems
Working Principle & Application Notes
Safety valve on air compressor is a compact small-bore pressure relief device for liquid and low-flow gas systems. Carbon steel version works from -29℃ to 200℃; stainless steel version applies to weakly corrosive media up to 200℃. Under normal working condition the valve keeps sealed. Once overpressure occurs, slight lift enables slow stable discharge; the valve closes automatically as pressure recovers.No manual wrench for on-site opening test.Safety valve on air compressor not suitable for large-flow steam, high-capacity gas and conditions with severe back-pressure fluctuation. For steam large-capacity discharge, full-lift safety valve shall be selected instead.
|
A21 Series Models |
|||||||
|
A21F-16C |
A21H-16C |
A21H-40 |
A21H-64 |
A21Y-100 |
A21H-160 |
A21W-16P |
A21W-40P |
|
A21F-40P |
A21W-64P |
A21W-100P |
A21W-160P |
KA21Y-16C |
KA21Y-16P |
A21Y-16R |
A21Y-40R |
|
A21Y-64R |
A21Y-100R |
A21Y-160R |
|
|
|
|
|
|
|
Part Name |
A21H-C/A21F/KA21Y-C |
A21W-P/A21F-P/KA21Y-P |
A21Y-R |
|
1 |
Union |
20 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
2 |
Union Nut |
35 |
2Cr13 |
1Cr18Ni9Ti |
|
3 |
Seat |
35 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
4 |
Body |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
5 |
Disc |
2Cr13/2Cr13+PTFE |
1Cr18Ni9Ti/1Cr18Ni9Ti+PTFE |
1Cr18Ni12Mo2Ti |
|
6 |
Spring Washer |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
7 |
Spring |
50CrVA |
50CrVA, Teflon Coated |
50CrVA, Teflon Coated |
|
8 |
Locking Nut |
Q235-A |
2Cr13 |
1Cr18Ni9Ti |
|
9 |
Spring Guide |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
10 |
Adjusting Nut |
Q235-A |
2Cr13 |
1Cr18Ni12Mo2Ti |
Safety Valve On Air Compressor Main Dimension
|
Dimensions (mm) |
||||||||||
|
Type |
Nominal Diameter (DN) |
do |
d |
D₀ |
M |
d₁ |
D₁ |
L |
L₁ |
≈H |
|
KA21-16C A21W-40P |
15 |
12 |
15 |
20 |
M27×1.5 |
G 1/2＂ |
30 |
35 |
76 |
66 |
|
20 |
16 |
20 |
25 |
M33×1.5 |
G 3/4＂ |
34 |
40 |
87 |
68 |
|
|
25 |
18 |
25 |
31 |
M39×1.5 |
G1＂ |
40 |
50 |
100 |
105 |
|
|
A21Y-64
|
15 |
10 |
15 |
25 |
M39×1.5 |
G1＂ |
44 |
50 |
100 |
66 |
|
20 |
10 |
20 |
31 |
M39×1.5 |
G1＂ |
44 |
50 |
100 |
68 |
|
|
25 |
12 |
25 |
31 |
M39×1.5 |
G1＂ |
44 |
50 |
100 |
105 |
|
|
A21W-160 /160P
|
15 |
8 |
20 |
/ |
M24×2 |
G1＂ |
44 |
52 |
100 |
261 |
|
20 |
8 |
25 |
/ |
M33×2 |
G1＂ |
44 |
52 |
100 |
261 |
|
|
25 |
8 |
28 |
/ |
M36×2 |
G1＂ |
44 |
52 |
100 |
285 |
|
