Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of pressure relief valve boiler in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable pressure relief valve boiler, welcome to get quotation from our factory.

Size Range	1" ~ 24"
Pressure Rating	PN16 ~ PN100
Temperature Range	Carbon Steel: -20℃~200℃; Stainless Steel: -40℃~250℃
Connection Type	Flanged
Material	Carbon Steel / Stainless Steel
Operation	Spring Loaded, Open Type, with Lifting Lever
Suitable Medium	Non-Corrosive, Non-Toxic Media such as Air, Steam, Water, Oil

Features

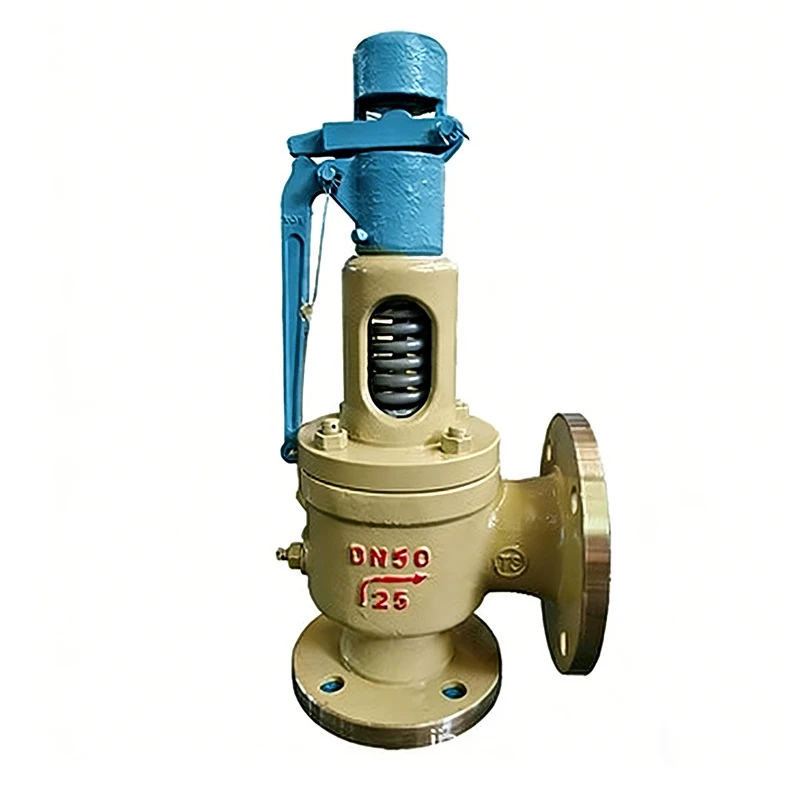

Open Bonnet Micro-lift Spring-loaded Structure

Adopts classic open bonnet design with exposed internal spring components for easy visual inspection and maintenance. The professional micro-lift structure enables gradual and stable pressure relief without sudden pressure shock to the system. Different from full-lift valves, it maintains stable system pressure during pressure relief, effectively protecting liquid pipeline and pressure vessel equipment from pressure impact damage.

Standard Equipped Manual Lifting Wrench

Comes with integrated manual lifting wrench as standard configuration. On-site staff can perform regular manual opening tests and equipment calibration without disassembly. The wrench operation is flexible and labor-saving, which is convenient for daily equipment inspection, fault troubleshooting and emergency pressure relief. It is the essential maintenance structure for industrial conventional safety valves.

Hard Alloy Overlay Sealing Surface

Valve seat and disc are overlaid with high-performance Stellite hard alloy. The sealing surface features high hardness, strong anti-scouring, anti-wear and heat-resistant properties. It can maintain reliable zero-leakage sealing state under long-term rated working pressure, resist medium erosion and abrasion, and extend the overall service life of the valve.

Fully Mechanical Automatic Operation

Adopts pure mechanical spring drive, no external power supply or auxiliary control equipment required. The set pressure can be accurately adjusted on site according to actual working conditions. When system pressure exceeds the preset value, the valve opens slightly and automatically for steady pressure relief; when pressure drops back to the allowable range, the valve resets and closes tightly automatically, with stable operation and low failure rate.

Typical Application Equipment

- Industrial circulating water systems, heating pressure vessels and water storage tanks

- Low-pressure saturated steam pipelines, heat exchangers and thermal auxiliary equipment

- Petrochemical light oil storage tanks and low-pressure bearing equipment

- Civil and industrial boiler auxiliary pressure relief equipment

- General industrial liquid medium systems requiring stable micro-pressure relief and regular manual inspection

Working Principle & Application Notes

Pressure relief valve boiler with wrench is a conventional general-purpose pressure relief valve, widely used in liquid and low-pressure stable steam/gas systems. Carbon steel version is suitable for working temperature of -20℃ ~ 200℃, and stainless steel version is applicable to weakly corrosive media below 250℃. The micro-lift design realizes slow and uniform pressure release to avoid system pressure fluctuation. It supports on-site manual jumping inspection to ensure normal valve performance. Not suitable for high-pressure superheated steam, large-flow gas and working conditions with severe back pressure fluctuation. Pressure relief valve boiler widely used safety valve for liquid medium overpressure protection in industrial conventional systems.

Main Parts & Materials
Part Name	Material
Body	WCB
Seat	ZG2Cr13
Adjusting Ring	ZG2Cr13
Disc	2Cr13
Guide Bush	2Cr13
Bonnet	ZG230-450
Spring	50CrVA
Stem	2Cr13
Lever	ZG200-400
Adjusting Screw	45
Cap	ZG200-400
Sealing Surface	"H": D507 Hardfacing Overlay; "Y": Co-Based Hard Alloy Overlay

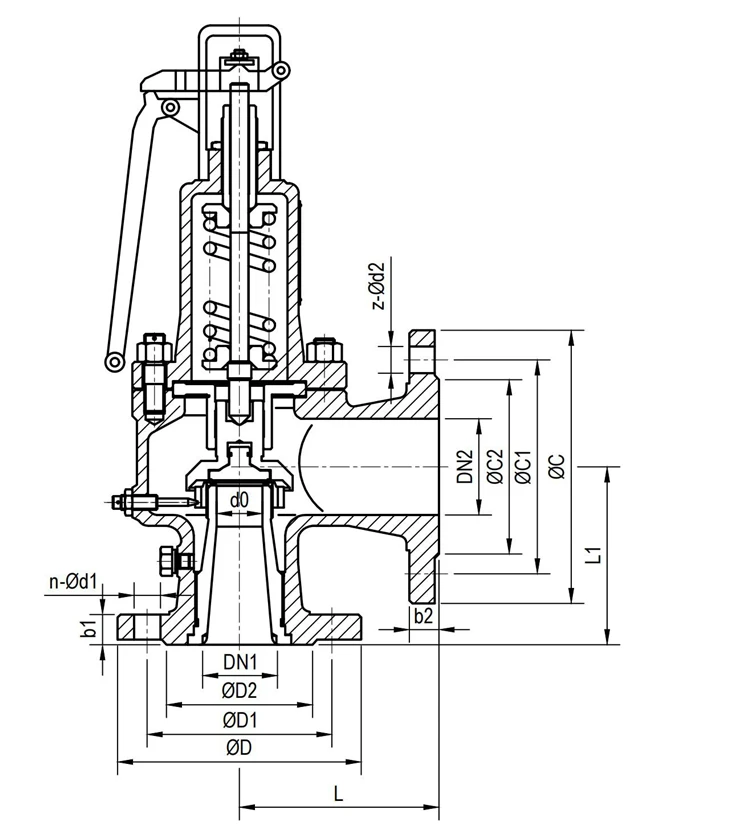

Pressure Relief Valve Boiler Main Dimension

Dimensions (mm)
Type	DN	do	D	K	g	g₁	b	f	f₁	Z-φd	DN¹	D₁	K₁	g₂	g³	b₁	f'	f'₁	Z¹-φd¹	L	L₁	≈H
A47H-16C	20	15	105	75	/	55	16	2	/	4-14	20	105	75	55	/	16	2	/	4-14	100	85	270
	25	20	115	85	/	65	16	2	/	4-14	25	115	85	65	/	16	2	/	4-14	100	85	270
	32	25	140	100	/	78	18	2	/	4-18	32	140	100	78	/	18	2	/	4-18	115	100	312
	40	32	150	110	/	85	18	3	/	4-18	40	150	110	85	/	18	3	/	4-18	120	110	320
	50	40	165	125	/	100	20	3	/	4-18	50	165	125	100	/	20	3	/	4-18	135	120	390
	65	50	185	145	/	120	20	3	/	4-18	65	185	145	120	/	20	3	/	4-18	140	130	395
	80	65	200	160	/	135	20	3	/	8-18	80	200	160	135	/	20	3	/	8-18	160	135	400
	100	80	220	180	/	155	22	3	/	8-18	100	220	180	155	/	22	3	/	8-18	170	160	600
	125	100	250	210	/	185	22	3	/	8-18	125	250	210	185	/	22	3	/	8-18	190	190	620
	150	125	285	240	/	210	24	3	/	8-23	150	285	240	210	/	24	3	/	8-23	205	195	625
	200	150	340	295	/	265	26	3	/	12-23	200	340	295	265	/	26	3	/	12-23	240	230	798
	250	200	405	355	/	320	30	3	/	12-26	250	405	355	320	/	30	3	/	12-26	350	320	981
	300	250	460	410	/	375	30	4	/	12-26	300	460	410	375	/	30	4	/	12-26	350	320	1005
A47H-25	20	15	105	75	/	55	16	2	/	4-14	20	105	75	55	/	16	2	/	4-14	100	85	270
	25	20	115	85	/	65	16	2	/	4-14	25	115	85	65	/	16	2	/	4-14	100	85	270
	32	25	140	100	/	78	18	2	/	4-18	32	140	100	78	/	18	2	/	4-18	115	100	312
	40	32	150	110	/	85	18	3	/	4-18	40	150	110	85	/	18	3	/	4-18	120	110	320
	50	40	165	125	/	100	20	3	/	4-18	50	165	125	100	/	20	3	/	4-18	135	120	390
	65	50	185	145	/	120	22	3	/	8-18	65	185	145	120	/	20	3	/	4-18	140	130	395
	80	65	200	160	/	135	24	3	/	8-18	80	200	160	135	/	20	3	/	8-18	160	135	400
	100	80	230	190	/	160	24	3	/	8-23	100	220	180	155	/	20	3	/	8-18	170	160	600
	125	100	270	220	/	188	28	3	/	8-26	125	250	210	185	/	22	3	/	8-18	190	190	620
	150	125	300	250	/	218	30	3	/	8-26	150	285	240	210	/	24	3	/	8-23	205	195	625
	200	150	360	310	/	278	34	3	/	12-26	200	340	295	265	/	26	3	/	12-23	240	230	798
	250	200	425	370	/	332	36	3	/	12-30	250	405	355	320	/	30	3	/	12-26	350	320	981
	300	250	485	430	/	390	40	4	/	16-30	300	460	410	375	/	30	4	/	12-26	350	320	1005
A47H-40	20	15	105	75	51	55	16	2	4	4-14	20	105	75	55	/	16	2	/	4-14	100	85	270
	25	20	115	85	58	65	16	2	4	4-14	25	115	85	65	/	16	2	/	4-14	100	85	270
	32	25	140	100	66	78	18	2	4	4-18	32	140	100	78	/	18	2	/	4-18	115	100	312
	40	32	150	110	76	85	18	3	4	4-18	40	150	110	85	/	18	3	/	4-18	120	110	320
	50	40	165	125	88	100	20	3	4	4-18	50	165	125	100	/	20	3	/	4-18	135	120	390
	65	50	185	145	110	120	22	3	4	8-18	65	185	145	120	/	20	3	/	4-18	140	130	395
	80	65	200	160	121	135	22	3	4	8-18	80	200	160	135	/	20	3	/	8-18	160	135	400
	100	80	235	190	150	160	24	3	4.5	8-23	100	220	180	155	/	20	3	/	8-18	170	160	600
	125	100	270	220	176	188	28	3	4.5	8-26	125	250	210	185	/	22	3	/	8-18	190	190	620
	150	125	300	250	204	218	30	3	4.5	8-26	150	285	240	210	/	24	3	/	8-23	205	195	625
	200	150	375	320	260	282	38	3	4.5	12-30	200	340	295	265	/	26	3	/	12-23	240	230	798
	250	200	450	385	313	345	42	3	4.5	12-34	250	405	355	320	/	30	3	/	12-26	350	320	981
	300	250	515	450	364	408	46	4	4.5	16-34	300	460	410	375	/	30	4	/	12-26	350	320	1005
A47H-64 A47Y-64	20	15	130	90	51	68	20	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	301
	25	20	140	100	58	78	22	2	4	4-18	25	115	85	65	58	16	2	4	4-14	100	95	301
	32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	312
	40	32	170	125	76	95	24	3	4	4-23	40	150	110	85	76	18	3	4	4-18	135	115	366
	50	40	180	135	88	105	26	3	4	4-23	50	165	125	100	88	20	3	4	4-18	160	125	396
	65	50	205	160	110	130	28	3	4	8-23	65	185	145	120	110	22	3	4	8-18	175	160	570
	80	65	215	170	121	140	30	3	4	8-23	80	200	160	135	121	22	3	4	8-18	175	160	565
	100	80	250	200	150	168	32	3	4.5	8-26	100	235	190	160	150	24	3	4.5	8-23	190	180	597
	150	100	345	280	204	240	38	3	4.5	8-34	150	300	250	218	204	30	3	4.5	8-26	280	260	738
A47H-100 A47Y-100	20	15	130	90	51	68	22	2	4	4-18	20	105	75	55	51	16	2	4	4-14	100	95	301
	25	20	140	100	58	78	24	2	4	4-18	25	115	85	65	58	16	2	4	4-14	100	95	301
	32	25	155	110	66	82	24	2	4	4-23	32	140	100	78	66	18	2	4	4-18	115	105	312
	40	32	170	125	76	95	26	3	4	4-23	40	150	110	85	76	18	3	4	4-18	135	115	366
	50	40	195	145	88	112	28	3	4	4-26	50	165	125	100	88	20	3	4	4-18	160	125	396
	65	50	220	170	110	138	32	3	4	8-26	65	185	145	120	110	22	3	4	8-18	175	160	570
	80	65	230	180	121	148	34	3	4	8-26	80	200	160	135	121	22	3	4	8-18	175	160	565
	100	80	265	210	150	172	38	3	4.5	8-30	100	235	190	160	150	24	3	4.5	8-23	190	180	597
	150	100	355	290	204	250	46	3	4.5	12-34	150	300	250	218	204	30	3	4.5	8-26	280	260	738
