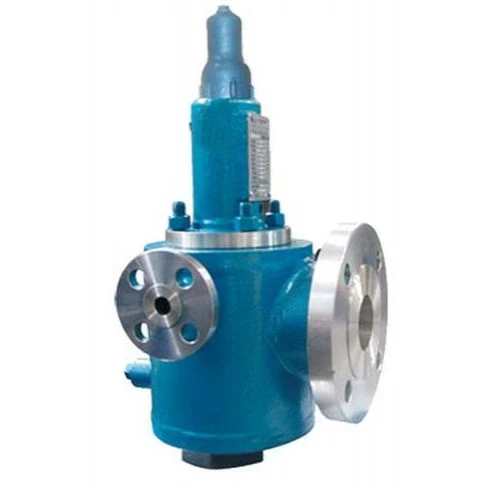

Liquid Pressure Relief Valve

Liquid Pressure Relief Valve
Product Introduction:
- Petrochemical & refining pressure vessels and liquid process pipelines
- Toxic, harmful, corrosive liquid pressure systems
- Working conditions with fluctuating outlet back-pressure
- Heat exchangers, separators, liquid storage tanks
- Chemical fertilizer, fine-chemical liquid-phase equipment
Send Inquiry
Description
Technical Parameters

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of liquid pressure relief valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable liquid pressure relief valve, welcome to get quotation from our factory.



Features



Bellows-balanced compensation structure

Built-in stainless steel bellows assembly, offsets fluctuating outlet back-pressure, protects spring internals from corrosive medium, prevents medium leakage to atmosphere.

01

Closed-bonnet low-lift spring-loaded design (without lifting wrench)

Low-lift structure, small disc opening height (1/40～1/20 of nozzle diameter), moderate discharge capacity, gentle pressure relief, low water-hammer impact. Closed bonnet, no manual lifting wrench.

02

Hard-alloy overlay sealing surface

Seat and disc overlaid with hard alloy, anti-erosion, reliable sealing performance, good re-seat performance.

03

API standard pound-grade design

Designed per API-526, tested per API-527; flange ASME B16.5; pressure class Class150-600.

04

Working parameters

Body WCB carbon steel; working temperature ≤300℃; mainly for liquid media, also applicable for small-capacity gas service.

05

Limitation：Not suitable for medium containing solid particles, solid particles will damage bellows.



Typical Application Equipment



- Petrochemical & refining pressure vessels and liquid process pipelines

- Toxic, harmful, corrosive liquid pressure systems

- Working conditions with fluctuating outlet back-pressure

- Heat exchangers, separators, liquid storage tanks

- Chemical fertilizer, fine-chemical liquid-phase equipment

Liquid pressure relief valve applies for liquid and small-capacity gas systems with temperature ≤300℃. Built-in bellows counteracts fluctuating back-pressure. When system pressure exceeds set value, the valve opens to discharge medium. When pressure drops back to allowable value, the valve closes automatically to protect equipment and pipelines. Liquid pressure relief valve suitable for corrosive/toxic media and conditions with variable back-pressure.



Main Property and Specifiecation



Normal Pressure

PN

150

300

1500

Body strangth

Ps(MPa)

3

7.5

37.5

Set pressure

Pk(MPa)

0.1-2

1.6-5

10-25

Seal pressure

Pm(MPa)

90%Pk

Reseation pressure

Ph(MPa)

≥80%Pk

Relieving pressure

Pp(MPa)

≤1.2Pk

Llift

H(mm)

≥1/20d0

Appropriate temperature

C

≤300℃

P,R

≤200℃

Appropriate medium

C

Gas,Liquid

P,R

Nitnic Acid,Acetic Acid,Gas,Liquid



Code Of Throat Diameter



Code

Diameter

Code

Diameter

D

10

L

48

E

13

M

55

F

16

N

60

G

20.5

P

72

H

26

Q

96

J

33

R

115

K

40

T

148

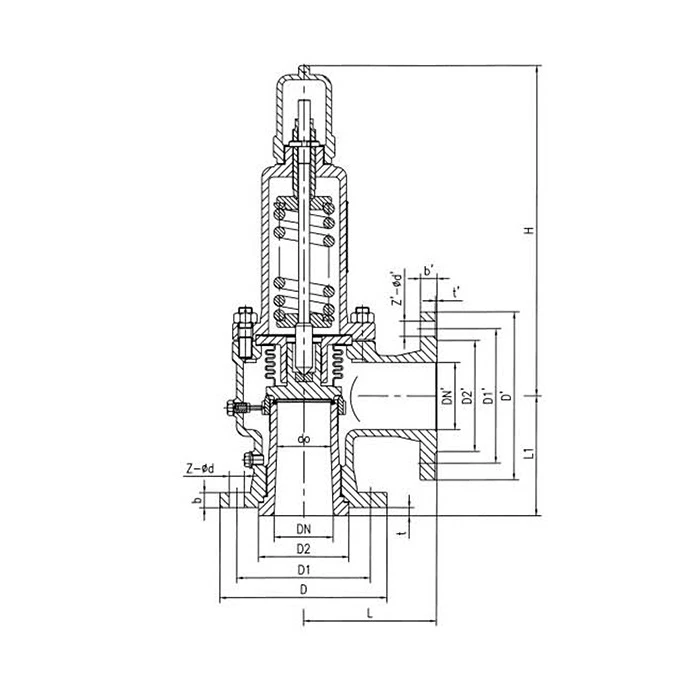

Liquid Pressure Relief Valve Main Dimension



WA41C150,WA41C150P,WA41C150R

NominalDiameter
DN(in)

Dimension (mm)

d0

D

D1

D2

b

t

Z-φd

DN'

D'

D1'

D2'

b'

t'

Z-φd'

L

L1

H

1/2"×1/2"

D

89

60.5

35

12

5

4-15

15

89

60.5

35

1.6

12

4-15

90

90

26

3/4"×1"

D

98

70

43

14

5

4-15

25

108

79.5

51

1.6

15

4-15

96

92

28

1"×1"

D

108

79.5

51

15

5

4-15

25

108

79.5

51

1.6

15

4-15

100

100

29

1"×2"

E

108

79.5

51

15

5

4-15

50

152

120.5

92

1.6

18

4-19

115

105

29

11/2"×11/2"

G

127

98.5

73

18

5

4-15

40

127

98.5

73

1.6

18

4-15

121

124

33

11/2"×2"

G

127

98.5

73

18

5

4-15

50

152

120.5

92

1.6

18

4-19

121

124

33

2"×3"

J

152

120.5

92

18

5

4-19

80

190

152.5

127

1.6

22

4-19

124

130

35



WA41C300,WA41C300P,WA41C300R

NominalDiameter
DN(in)

Dimension(mm)

do

D

D1

D2

b

t

Z-φd

DN'

D

D1'

D2

b'

t'

Z-φd

L

L1

H

1/2"×1/2"

D

95

66.5

35

15

6

4-15

15

89

60.5

35

1.6

12

4-15

90

90

32

3/4"×1"

D

117

82.5

43

16

10

4-19

25

108

79.5

51

1.6

15

4-15

96

92

33

1"×1"

D

124

89

51

18

6

4-19

25

108

79.5

51

1.6

15

4-15

100

100

35

1"×2"

E

124

89

51

18

6

4-19

50

152

120.5

92

1.6

18

4-19

115

105

35

11/2"×11/2"

G

156

114.5

73

20

9

4-22

40

127

98.5

73

1.6

18

4-15

121

124

37

11/2"×2"

G

156

114.5

73

20

9

4-22

50

152

120.5

92

1.6

18

4-19

121

124

37

2"×3"

J

165

127

92

22

8

8-19

80

190

152.5

127

1.6

22

4-19

124

130

39



WA41C300,WA41C300P,WA41C300R

NominalDiameter
DNlin

Dimension(mm)

d0

D

D1

D2

b

t

Z-φd

DN'

D'

D1'

D2'

b'

t'

Z-φd

L

L1

H

1"x1"

D

150

101.6

51

29

10

4-26

25

124

89

51

1.6

1.8

4-19

125

125

360
