Name: China Boiler Safety Valve Manufacturers Suppliers Factory - Customized Boiler Safety Valve - Starry
Brand: Starry
SKU: 314858404

Description

Technical Parameters

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of boiler safety valve in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable boiler safety valve, welcome to get quotation from our factory.

Size Range	1" ~ 6"
Pressure Rating	PN63/100/160
Temperature Range	≤550℃
Connection Type	Flanged
Material	WC6/WC9 Heat-resistant Alloy Steel
Operation	Automatic Full-Lift Relief on Overpressure (Lift Height ≥1/4 of Throat Diameter), Large Capacity & Fast Relief; Manual Lever for Testing Only
Suitable Medium	Saturated Steam, Superheated Steam, High-Temp & High-Pressure Water; Dedicated to Power Plant Boilers, Steam Generators, High-Temp & High-Pressure Thermal Pipelines

Features

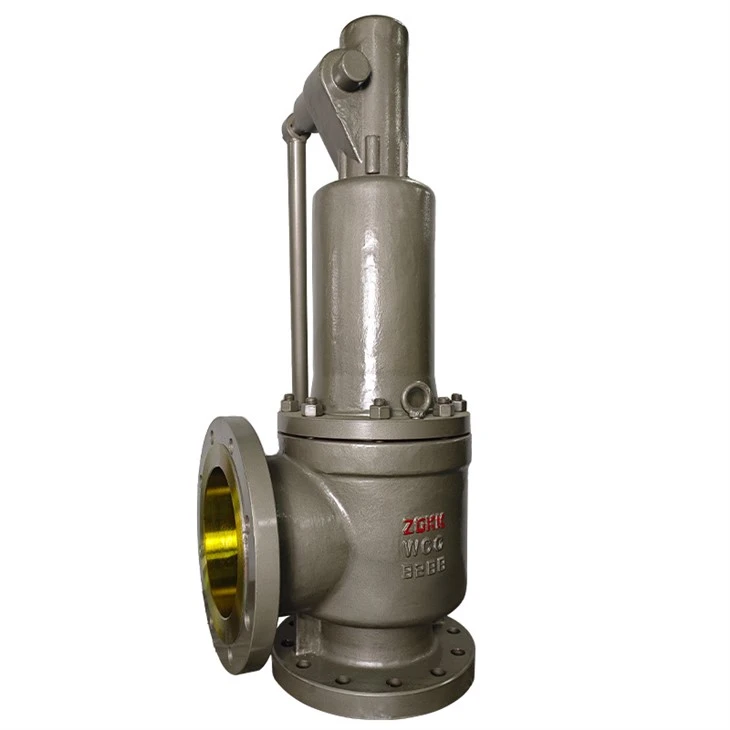

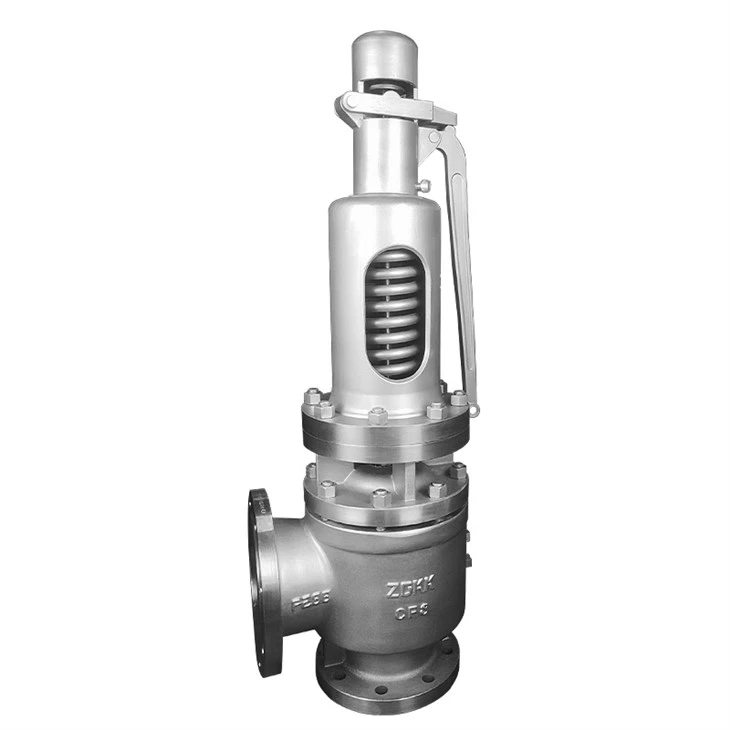

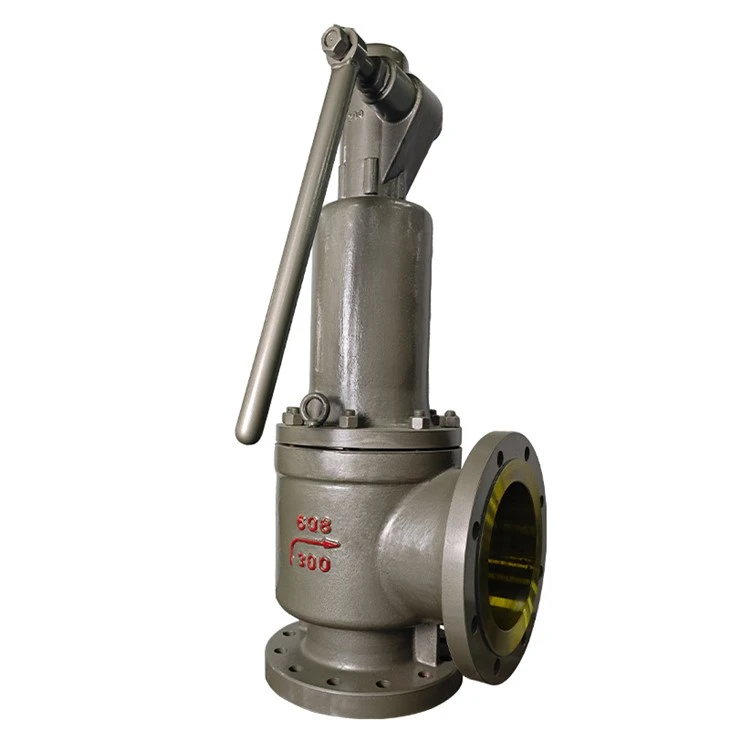

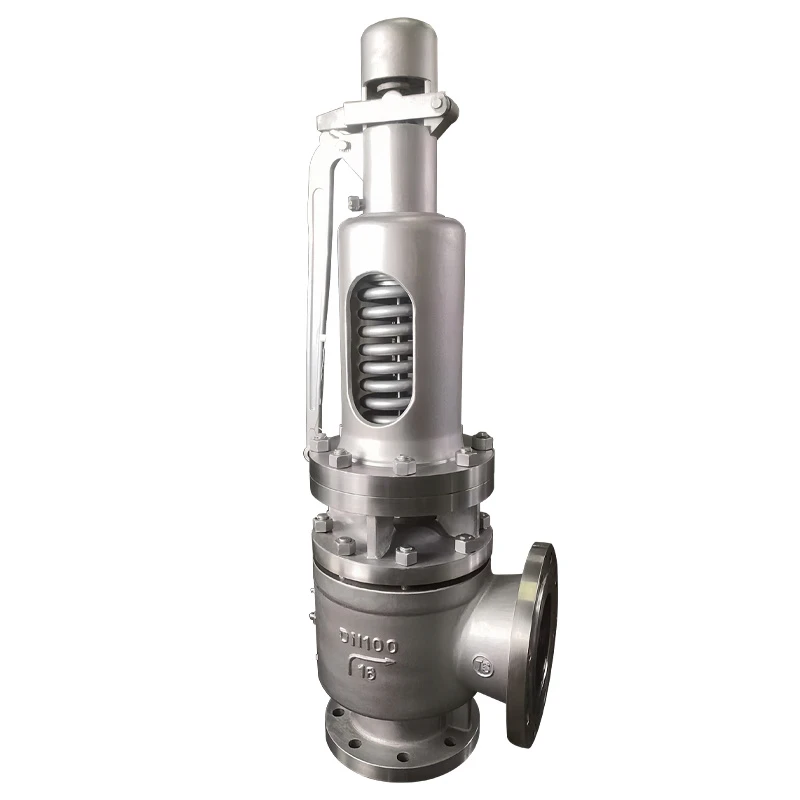

Spring-loaded full-lift structure with radiator

Equipped with radiator between body and spring bonnet, effectively isolates high-temperature heat, protects spring assembly from high-medium temperature. Full-lift design, disc lift ≥1/4 of nozzle diameter, large discharge capacity.

Open bonnet with manual lifting wrench

Open-type bonnet structure, good heat dissipation; fitted with lifting wrench for manual on-site inspection of valve flexibility.

Hard-alloy overlay sealing surface

Nozzle and disc overlaid with stellite hard alloy, anti-erosion, anti-scuffing, reliable sealing performance under high-temperature steam service.

High-temperature adaptability

Standard C-type for ≤425℃; upgraded material versions for 510℃,550℃ high-temperature steam; flange connection PN16-PN100, DN25-DN200.

Fully mechanical operation

No external power source required; set pressure adjustable on site, stable performance, convenient maintenance.

Limitation：Open bonnet design, not suitable for toxic, volatile medium; mainly for steam & high-temperature gas.

Typical Application Equipment

- Industrial boilers and steam generators

- High-temperature steam pressure vessels & steam headers

- Power plant auxiliary steam pipelines

- Petrochemical high-temperature steam process systems

- Metallurgy & thermal-power high-temperature pressure equipment

Boiler safety valve with radiator applies for steam and high-temperature gas systems up to 425℃. The radiator protects spring from high-temperature medium. When system pressure exceeds set value, the valve opens fully to discharge medium. When pressure drops back to allowable value, the valve closes automatically to protect boilers, vessels and steam pipelines. Boiler safety valve is equipped with lifting wrench for manual inspection.

Series Models
A48Y-16C	A48SH-40	A48sB-64	A48sB-100V
A48Y-16I	A48Y-64	A48Y-100	A48TH-100
A48Y-16V	A48Y-64I	A48Y-100I	A48Y-160
A48Y-40	A48Y-64V	A48Y-100V	A48sB-160
A48Y-40I	A48sB-64	A48sB-100	A48sB-160I
A48Y-40V	A48sB-64	A48sB-100I	A48sB-160V
The high-temperature and high-pressure steam safety valve is designed for steam and other high-temperature media in equipment and piping systems. Depending on the valve type, it is suitable for operating temperatures up to 425°C (Type C), 500°C (Type I), and 550°C (Type V). The valve automatically opens under overpressure conditions to provide reliable overpressure protection.

Materials for Main Parts
NO.	Name of part	Type C Materials	Type I Materials	Type V Materials
1	Body	WCB	ZG15Cr1Mo	ZG15Cr1Mo1V
2	Seat	2Cr13	12CrMo	12Cr1MoVX
3	Adjusting Ring	2Cr13	CF8	CF8
4	Disc	2Cr13	17-4PH	17-7PH
5	Guide Sleeve	2Cr13	304	304
6	Radiator	ZG230-450	WCB	WCB
7	Bonnet	ZG230-450	WCB	WCB
8	Spring	50CrVA	50CrVA	50CrVA

Boiler safety valve Main Dimension

Dimensions (mm)
Type	DN	do	D	K	g	g₁	b	f	f₁	Z-φd	DN¹	D₁	K₁	g₃	g₂	b₁	f'	f'₁	Z¹-φd¹	L	L₁	≈H
A48Y-16C A48Y-16I A48Y-16V	40	25	150	110	/	85	18	3	/	4-18	50	165	125	/	100	20	3	/	4-18	120	115	540
	50	32	165	125	/	100	20	3	/	4-18	65	185	145	/	120	20	3	/	4-18	135	120	618
	65	40	185	145	/	120	20	3	/	4-18	80	200	160	/	135	20	3	/	8-18	160	140	710
	80	50	200	160	/	135	20	3	/	8-18	100	220	180	/	155	22	3	/	8-18	160	150	730
	100	65	220	180	/	155	20	3	/	8-18	150	285	240	/	210	24	3	/	8-23	225	175	892
	150	100	285	240	/	210	24	3	/	8-23	200	340	295	/	265	26	3	/	12-23	230	215	1135
	200	125	340	295	/	265	26	3	/	12-23	250	405	355	/	320	30	3	/	12-26	290	310	1240
A48Y-40 A48Y-40I A48Y-40V	25	16	115	85	58	65	16	2	4	4-14	32	140	100	/	78	18	2	/	4-18	110	95	429
	32	20	140	100	66	78	18	2	4	4-18	40	150	110	/	85	18	3	/	4-18	115	100	421
	40	25	150	110	76	85	18	3	4	4-18	50	165	125	/	100	20	3	/	4-18	120	115	540
	50	32	165	125	88	100	20	3	4	4-18	65	185	145	/	120	20	3	/	4-18	135	120	618
	65	40	185	145	110	120	22	3	4	8-18	80	200	160	/	135	20	3	/	8-18	160	140	710
	80	50	200	160	121	135	22	3	4	8-18	100	220	180	/	155	22	3	/	8-18	170	135	730
	100	65	235	190	150	160	24	3	4.5	8-23	150	285	240	/	210	24	3	/	8-23	220	200	892
	150	100	300	250	204	218	30	3	4.5	8-26	200	340	295	/	265	26	3	/	12-23	230	215	1135
	200	125	375	320	260	282	38	3	4.5	12-30	250	405	355	/	320	30	3	/	12-26	290	310	1240
A48Y-64 A48sB-64 A48sB-64I A48sB-64I A48Y-64V A48sB-64V	25	16	140	100	58	78	22	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	429
	32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	421
	40	25	170	125	76	95	24	3	4	4-23	50	165	125	88	100	20	3	4	4-18	135	120	540
	50	32	180	135	88	105	26	3	4	4-23	65	185	145	110	120	22	3	4	8-18	160	130	618
	50	32	180	135	88	105	26	3	4	4-23	80	200	160	121	135	22	3	4	8-18	160	145	710
	65	40	205	160	110	130	28	3	4	8-23	80	200	160	121	135	22	3	4	8-18	175	160	710
	80	50	215	170	121	140	30	3	4	8-23	100	235	190	150	160	24	3	4.5	8-23	175	160	730
	100	65	250	200	150	168	32	3	4.5	8-26	125	270	220	176	188	28	3	4.5	8-25	220	200	800
	100	65	250	200	150	168	32	3	4.5	8-26	150	300	250	204	218	30	3	4.5	8-26	220	200	892
	150	100	345	280	204	240	38	3	4.5	8-34	200	375	320	260	282	38	3	4.5	12-30	280	280	1135
	200	125	405	345	260	300	44	3	4.5	12-36	250	450	385	313	345	42	3	4.5	12-34	300	295	1135
A48Y-100 A48sB-100 A48Y-100I A48sH-100 A48sB-100V	25	16	140	100	58	78	24	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	429
	32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	421
	40	25	170	125	76	95	26	3	4	4-23	50	165	125	88	100	20	3	4	4-18	135	120	540
	50	32	195	145	88	112	28	3	4	4-26	65	185	145	110	120	22	3	4	8-18	160	130	618
	50	32	195	145	88	112	28	3	4	4-26	80	200	160	121	135	22	3	4	8-18	160	145	710
	65	32	220	170	110	138	32	3	4	8-26	80	200	160	121	135	22	3	4	8-18	175	160	710
	80	40	230	180	121	148	34	3	4	8-26	100	235	190	150	160	24	3	4.5	8-23	175	160	730
	100	65	265	210	150	172	38	3	4.5	8-30	125	270	220	176	188	28	3	4.5	8-25	220	200	800
	100	65	265	210	150	172	38	3	4.5	8-30	150	300	250	204	218	30	3	4.5	8-26	220	200	892
	150	80	355	290	204	250	46	3	4.5	12-34	200	375	320	260	282	38	3	4.5	12-30	280	280	1135
	200	125	430	360	260	312	54	3	4.5	12-36	250	450	385	313	345	42	3	4.5	12-34	300	295	1362
A48SH-40	50	32	160	125	88	105	38	3	4	4-18	80	195	160	/	135	20	3	/	8-18	124	137	525
A48TH-100	50	32	195	145	88	112	50	3	4	4-26	80	200	160	121	135	22	3	4.5	8-18	160	145	580
A48sB-160	80	40	260	205	121	168	65	3	4	8-30	150	300	250	204	218	30	3	4.5	8-25	215	210	1175
