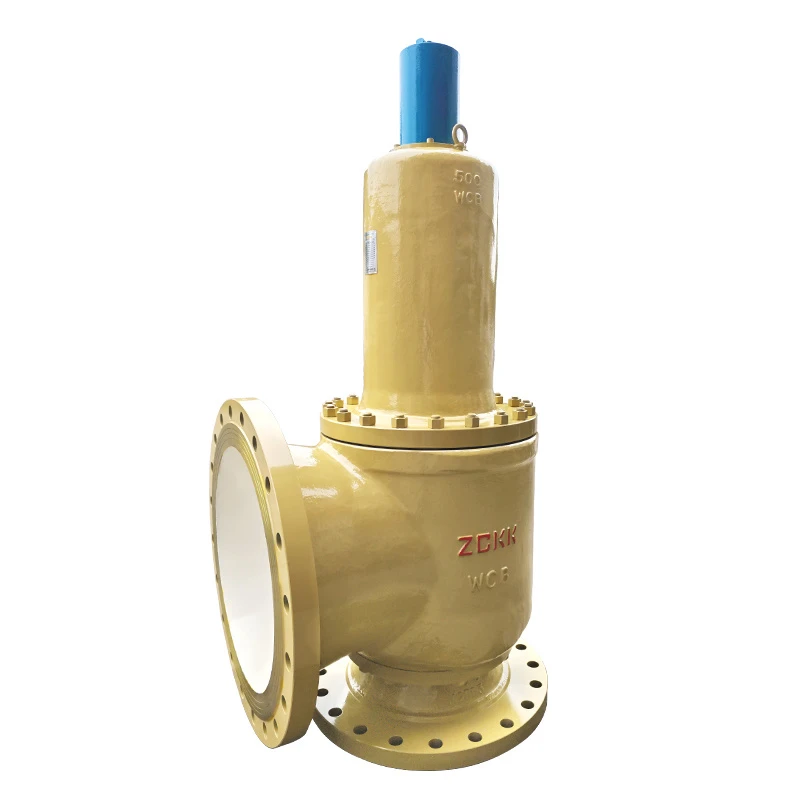

Wenzhou Starry Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of safety valve oil and gas in China. We are committed to providing high quality customized valves with low price. If you're going to buy bulk durable safety valve oil and gas, welcome to get quotation from our factory.
| Size Range | 1" ~ 6" |
| Pressure Rating | PN16 – PN100 |
| Temperature Range | –29°C ~ 200°C |
| Connection Type | Flanged |
| Material | Carbon Steel / Stainless Steel |
| Operation | KA41: Automatic Low-Lift Relief on Over-pressure (Lift Height ≤1/40 of Throat Diameter); KA42: Automatic Full-Lift Relief on Over-pressure (Lift Height ≥1/4 of Throat Diameter) |
| Suitable Medium | H₂S-Containing Natural Gas, Oilfield Associated Gas, Acidic Oil and Gas Media |
Features
All pressure-bearing and medium-contact parts are selected and treated strictly per NACE MR0175 / ISO15156 standard, effectively resisting sulfide stress-corrosion-cracking (SSCC) and hydrogen-induced cracking (HIC). Special anti-sulfur coating for spring to prevent hydrogen-brittlement failure under wet-H₂S environment, guarantee long-term safe operation in sour oil-gas field, desulfurization unit and sour-water stripping system.
KA41 micro-lift type achieves gradual stable pressure relief, ideal for liquid-phase sour medium, reduces loss of hazardous process fluid. KA42 full-lift type is equipped with back-blow disc structure for large-capacity instant discharge, meeting fast over-pressure relief requirement for sour natural gas and acid gas pipeline. Two structures cover liquid-phase and gas-phase sour-service respectively.
Fully closed bonnet structure prevents toxic sour medium leakage to atmosphere. Outlet flange allows connecting closed vent piping for centralized collection and treatment of poisonous H₂S-containing medium. Avoid personnel hazard and environmental pollution, fit for petrochemical and on-site oil-gas plant safety specifications.
Valve seat and disc overlaid with Stellite hard alloy with sulfur-resistant adaptation. Good anti-erosion and wear-resistant performance under sour-medium scouring. Strict sealing performance according to API 527 leakage standard, maintain reliable tight-shut-off under rated working pressure for toxic sour-service.
No external power supply required. Set pressure can be precisely adjusted on-site. Valve opens automatically upon system over-pressure, closes tightly when pressure falls back to allowable range. Stable mechanical performance, convenient inspection and maintenance for oil-gas field remote installation points.
Typical Application Equipment
- Sour-natural-gas pressure vessels and gathering pipelines in oil-gas fields
- Refinery acid-containing oil-water buffer tank and pressure-bearing apparatus
- On-site hazardous sour-medium equipment requiring NACE anti-sulfur certification
Working Principle & Application Notes
Safety valve oil and gas is special spring-loaded relief valve developed for wet-H₂S sour corrosive environment. KA41 micro-lift for liquid-phase sour-media; KA42 full-lift for sour-gas large-flow discharge. All wetted parts satisfy NACE MR0175 anti-sulfide-cracking requirement, operating temperature limited within -29℃ ~200℃. Do NOT exceed temperature limit for sour-service; Safety valve oil and gas series are forbidden for H₂S-containing medium.
|
Main Performance Parameters |
||||||||
|
Model |
Set Pressure Pk / MPa |
Seat Tightness Test Pressure / MPa |
Discharge Pressure / MPa |
Reseating Pressure / MPa |
Lift Height / mm |
Applicable Temperature / °C |
Applicable Medium |
Discharge Coefficient |
|
KA42Y-16C |
Pk=0.1-1.6 |
When Pk ≤ 0.3: Pk − 0.03 |
≤ 1.1 × Pk |
≥ 85% of Pk |
≥ 1/4 of Throat Diameter |
-29-121 |
Sour Natural Gas |
0.7 |
|
KA42Y-40 |
Pk=1.3-4.6 |
|||||||
|
KA42Y-64 |
Pk=3.2-6.4 |
|||||||
|
KA42Y-100 |
Pk=5.0-10 |
|||||||
|
Main Parts & Materials |
||||
|
Model |
Part Name |
|||
|
Body |
Seat / Guide Sleeve |
Spring |
Adjusting Screw |
|
|
KA42Y-16C |
Carbon Steel |
Cr-Ni-Ti Stainless Steel |
50CrVA (Fluoroplastic Coated) |
Carbon Steel |
|
KA42Y-16P |
Cr-Ni-Ti Stainless Steel |
Chromium Stainless Steel |
||
Safety Valve Oil And Gas Main Dimension
|
Dimensions (mm) |
|||||||||||
|
KA42Y-16C,KA42Y-16P,KA42Y-25,KA42Y-25P |
|||||||||||
|
Nominal Diameter (DN) |
Dimensions /mm |
Weight /kg |
|||||||||
|
L |
L1 |
D |
D1 |
D2 |
b |
Z-φd |
d0 |
H |
Discharge Flange |
||
|
25 |
100 |
95 |
115 |
85 |
65 |
16 |
4-φ14 |
15 |
250 |
PN16 |
10 |
|
32 |
115 |
100 |
140 |
100 |
78 |
18 |
4-φ18 |
20 |
277 |
PN16 |
11 |
|
40 |
120 |
110 |
150 |
110 |
84 |
18 |
4-φ18 |
25 |
281 |
PN16 |
13 |
|
50 |
135 |
120 |
165 |
125 |
99 |
20 |
4-φ18 |
32 |
307 |
PN16 |
15 |
|
80 |
170 |
135 |
200 |
160 |
132 |
20 |
8-φ18 |
50 |
429 |
PN16 |
40 |
|
100 |
200 |
160 |
220 |
180 |
158 |
22 |
8-φ18 |
65 |
530 |
PN16 |
61 |
|
150 |
250 |
210 |
280 |
240 |
210 |
24 |
8-φ23 |
100 |
675 |
PN16 |
120 |
|
KA42Y-40,KA42Y-40P |
||||||||||||
|
Nominal Diameter (DN) |
Dimensions /mm |
Weight /kg |
||||||||||
|
L |
L1 |
D |
D1 |
D2 |
D6 |
b |
Z-φd |
d0 |
H |
Discharge Flange |
||
|
25 |
100 |
95 |
115 |
85 |
65 |
58 |
16 |
4-φ14 |
15 |
250 |
PN16 |
11 |
|
32 |
115 |
100 |
140 |
100 |
76 |
66 |
18 |
4-φ18 |
20 |
287 |
PN16 |
12 |
|
40 |
120 |
110 |
150 |
110 |
85 |
76 |
18 |
4-φ18 |
25 |
291 |
PN16 |
15 |
|
50 |
135 |
120 |
165 |
125 |
100 |
88 |
20 |
4-φ18 |
32 |
335 |
PN16 |
19 |
|
80 |
170 |
135 |
200 |
160 |
135 |
121 |
22 |
8-φ18 |
50 |
503 |
PN16 |
54 |
|
100 |
200 |
160 |
220 |
180 |
160 |
150 |
24 |
8-φ23 |
65 |
580 |
PN16 |
75 |
|
150 |
250 |
210 |
280 |
240 |
218 |
204 |
30 |
8-φ25 |
100 |
742 |
PN16 |
162 |
|
KA42Y-64,KA42Y-64P |
||||||||||||
|
Nominal Diameter (DN) |
Dimensions /mm |
Weight /kg |
||||||||||
|
L |
L1 |
D |
D1 |
D2 |
D6 |
b |
Z-φd |
d0 |
H |
Discharge Flange |
||
|
40 |
135 |
120 |
165 |
125 |
95 |
76 |
24 |
4-φ23 |
25 |
346 |
PN16 |
30 |
|
50 |
160 |
130 |
175 |
135 |
105 |
88 |
26 |
4-φ23 |
32 |
368 |
PN16 |
35 |
|
80 |
175 |
160 |
210 |
170 |
140 |
121 |
30 |
8-φ23 |
50 |
500 |
PN16 |
80 |
|
100 |
220 |
200 |
250 |
200 |
168 |
150 |
32 |
8-φ25 |
65 |
835 |
PN16 |
110 |
|
KA42Y-100,KA42Y-100P |
||||||||||||
|
Nominal Diameter (DN) |
Dimensions /mm |
Weight /kg |
||||||||||
|
L |
L1 |
D |
D1 |
D2 |
D6 |
b |
Z-φd |
d0 |
H |
Discharge Flange |
||
|
40 |
135 |
120 |
165 |
125 |
95 |
76 |
26 |
4-φ23 |
25 |
346 |
PN16 |
30 |
|
50 |
160 |
130 |
175 |
135 |
105 |
88 |
28 |
4-φ25 |
32 |
368 |
PN16 |
34 |
|
80 |
175 |
160 |
210 |
170 |
140 |
121 |
34 |
8-φ25 |
50 |
500 |
PN16 |
80 |
|
100 |
220 |
200 |
250 |
200 |
168 |
150 |
38 |
8-φ30 |
65 |
835 |
PN16 |
110 |
|
150 |
285 |
260 |
350 |
290 |
250 |
204 |
46 |
12-φ34 |
100 |
890 |
PN16 |
170 |
